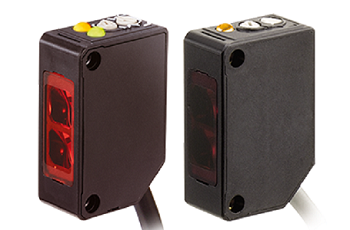

Z3R-Q/ZR-QX Series
- Low cost type and coaxial type transparent object detection sensor
- Long range detection at 2 m
- Uses red LED for simple light axis adjustment
- Industry standard size
Description
Optex Standard-sized LED Sensors : Since the light axis of both the receiver and emitter are a coaxial structure, there is no need to take into account the sensor mounting direction or workpiece movement direction. As an LED light source transparent object detection sensor, it boasts top of the line detection stability.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | Housing: ABS Front cover: PMMA |
| Protection category | IP 67 |
| Distance adjustment | 1-turn potentiometer |
Electrical
| Temperature range | -25 to +55℃ |
| Operating voltage | 10 to 30 VDC |
| Current consumption | 20mAmp |
| Light source | 4 element red LED |
| Response time | 500 μs or less |
