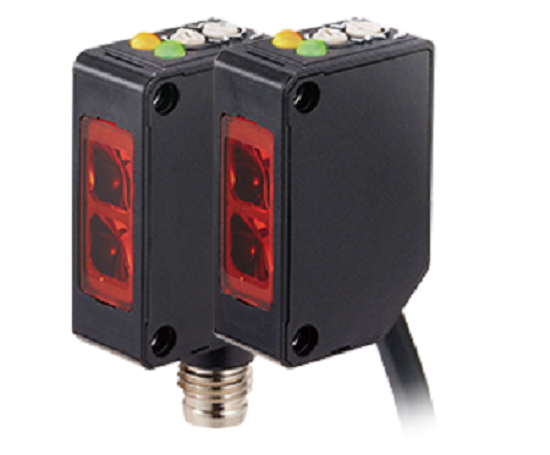

Z4 Series
Optex FA

Optex FA Z4 Series

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Industry standard sensors with IO-Link supported
  • Industry standard-sized amplifier built-in sensors
  • IO-Link supported: Connectable to various field networks via IO-Link Master
  • Enhanced ambient illuminance resistance against sunlight, incandescent and LED lights
Not sure this is the right model? Read the photoelectric sensors selection guide →

Optex Standard : IO-Link supported Connectable to various field networks via IO-Link Master. Monitoring data of received light amount and output status can be communicated with PLC via IO-Link Master. In addition, sensitivity, output mode and timer settings can be made via the field network.

Technical Specifications

Mechanical

MATERIAL PROPERTIES
  • Housing: ABS
  • Front cover: PMMA
Protection categoryIP67
Light source
  • 4-element red LED
  • Wavelength: 632 nm
Distance adjustment1-turn potentiometer

Electrical

Temperature range-25 to +55℃
Operating voltage
  • IO-Link mode: 18 to 30 VDC
  • SIO mode: 10 to 30 VDC
Current consumption20mAmp
Response time500 μs or less

Applications

  • Sending received light level to the PLC over IO-Link for predictive maintenance
  • Remote setting of sensitivity and timers during product changeovers
  • Detection near sunlight or LED lighting on loading bays
  • Part presence on Industry 4.0 enabled assembly lines
  • Standard-size sensor upgrades on existing machines
