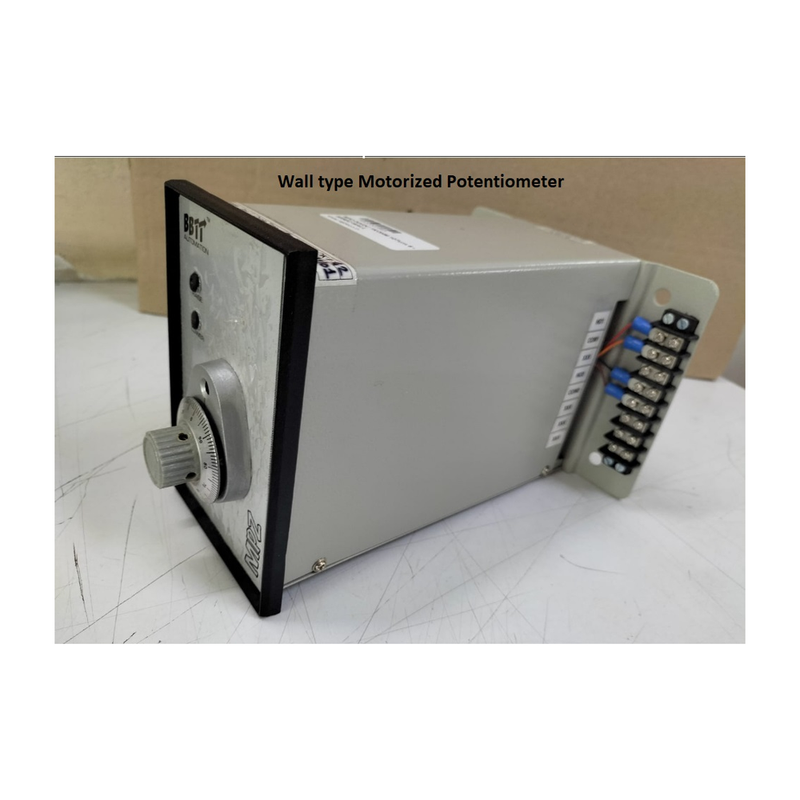

Motorized Potentiometer

Speed variator facility allowing basic cycle time multiplication by 10x. Motor-driven potentiometer with safe isolation, manual counter knob, motor burn-out protection at limits, intermediate limit setting, and wall- or panel-mount models.

Type	Motor-driven 10-turn potentiometer with electronic controller
Output	SPDT relay changeover (NC to NO) per limit — NO1/COM1 NO2/COM2
Mounting	Wall mount or panel mount
Cycle time	6–100 sec (10 turns 3500°)
Control signal	RAISE/LOWER via +24VDC digital input (remote set-point control)
Supply voltage	24 VDC, or 110/240 VAC ±10% 50/60 Hz single phase

Description

The MPZ is a versatile electro-mechanical unit made up of a motor-driven potentiometer interfaced with an electronic controller and function circuit. The unit is highly compact and user friendly, manufactured in technical collaboration with Micronor AG, Switzerland. The 10-turn variable resistor can represent different continuous physical phenomena in terms of electrical equivalence, and its positional repeatability helps in developing closed-loop control for processes as well as machines. The electronic controller provides locking limits to the motor-driven pot at the maximum and minimum positions; a friction coupling protects the motor when the pot is varied manually. Remote programming of the set point is possible via RAISE & LOWER commands, and relays in the controller can be used for positional feedback of the machine shaft.
