5026
Kübler

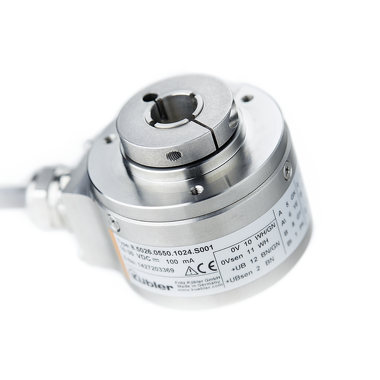

Kübler 5026

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Particularly resistant
  • High quality seals
  • Material resistant
  • Dimension Ø 50 mm
  • 5.000 ppr incremental
  • Max 15 mm hollow shaft, through
  • Max 3/8" hollow shaft, through
  • Max 1/2" hollow shaft, blind hole
Not sure this is the right model? Read the rotary encoders selection guide →

Kuebler : Stainless steel encoders for unlimited durability.
The incremental Sendix encoders 5006 / 5026 in stainless steel offer optimum material resistance and thus almost unlimited durability.
Their high-quality seals, IP66 / IP67 protection, and wide temperature range ensure additional density and robustness.

Technical Specifications

Mechanical

DimensionØ 50 mm
Shaft type10 mm hollow shaft, through 12 mm hollow shaft, through 15 mm hollow shaft, through 1/4 " hollow shaft, through 3/8 " hollow shaft, through 1/2 " hollow shaft, blind hole
Flange typeØ 50.80 mm Ø 63.00 mm
Connection typesM12 connector radial
Max. rotational speed6.000 min-1

Electrical

Working temperature-40 °C ... +85 °C
Power supply5...30 V DC 10...30 V DC
InterfacesGegentakt TTL / RS422

Applications

  • Washdown speed feedback on food and dairy machinery
  • Encoder use in corrosive chemical and pharma plants
  • Outdoor and marine equipment needing stainless housings
  • Through hollow shaft mounting on motors up to 15 mm
  • Low-temperature applications down to -40 C
