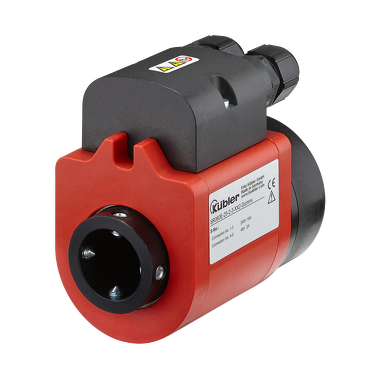

SR060E
Kübler

Kübler SR060E

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Heating and monitoring of sealing rollers
  • Compact solution
  • Long service life
  • With connector

Description

Kuebler : The compact slip ring,In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform.The SR060E is a compact, economical slip ring for up to 3 power and 2 signal transmissions.New innovative contact materials ensure long service life and extremely low-maintenance operation. The round shape with smooth surfaces and high protection level allows easy cleaning. V200 version : Additional connection options through implementation of M12 connectors for easiest mounting and maintenance.

Technical Specifications

Mechanical

Dimension60 mm
Mounting type20 mm Hollow shaft, through 22 mm Hollow shaft, through 24 mm Hollow shaft, through 25 mm Hollow shaft, through
Working temperature0 °C ... +75 °C
Protection levelIP64
Rotational speed500 min-1
Service life500 million revolutions
Maintenance cycles100 million revolutions

Electrical

Max. number of signal channels2.0
Max. number of load channels3.0
Load current transmission
  • 16 A
  • 240 V AC 20 A
  • 240 V AC/DC

Applications

  • Heating and temperature monitoring of sealing rollers on packaging machines
  • Power and signal transfer to heated rollers in form-fill-seal machines
  • Compact power transmission to rotating shafts on labelling machines
  • Supplying rotary indexing tables with up to 3 power and 2 signal circuits
  • Easy-clean rotary connection on FMCG and food packaging lines
