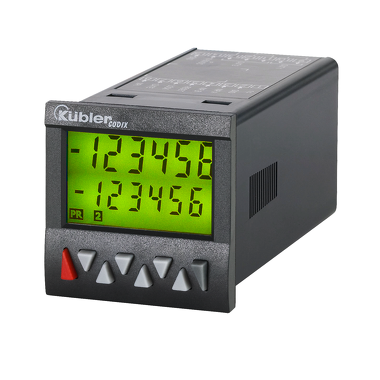

Kübler Codix 924
Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.
- Relay or optocoupler outputs
- Multirange power supply
- Display scalable by multiplier or dividing factor
- Dimension 48 x 48 mm , 45 x 45 mm
- Power supply: 24 (± 10%) V AC,100...240 (± 10%) V AC,10...30 V DC
- Display 6-digit number, LCD
Description
Kuebler Pulse preset counter, tachometer or time preset counter with up to 6 presets. The Codix 923 / 924 multifunction preset counter can be used universally. As a pulse preset counter, tachometer or time preset counter with up to 6 presets it offers various possibilities to solve control and monitoring tasks in every application. With the 2-line display in 4 different variants, the meter is easy to read and easy to program using the clearly arranged decade keys. More complex controls can also be implemented using a batch counter or total sum function.
Technical Specifications
Mechanical
| Dimension | 48 x 48 mm | 45 x 45 mm |
| temperature range | -20 °C ... +65 °C |
| Protection category | IP65 |
Electrical
| Operating voltage | 24V AC 100...240 V AC 10...30 V DC |
| Current consumption | 240 V AC, max. 15 VA 24 V AC max. 6 VA DC 10 ... 30 V, max. 5.5 W |
| Signal input | NPN PNP |
Applications
- Batch counting with presets on packaging and filling machines
- Length counting with encoders on cut-to-length lines
- Speed display as tachometer on conveyors and motors
- Time-based control of machine processes with preset outputs
- Production counting on textile and printing machines
More from Kübler

Kübler Couplings
Flexible Couplers for all types of Encoders, Potentiometers & Tachos. · Types: Spiral, Slit, Bellow & Cardanic. Please Turn Over for figures for AF/ AS type couplings.…
View Details →
Kübler M5861
View Details →
Kübler SR060E
Heating and monitoring of sealing rollers · Compact solution…
View Details →
Kübler KIH40
Economical · For small devices and machines…
View Details →
Kübler 5026
Particularly resistant · High quality seals…
View Details →
Kübler 5852
High speed · Resistant…
View Details →

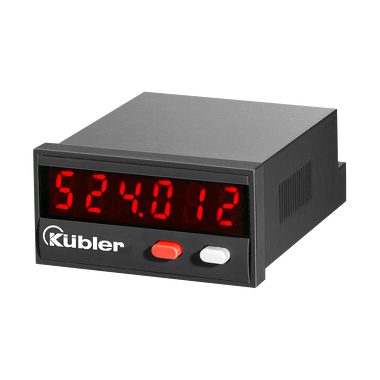

Codix 524
