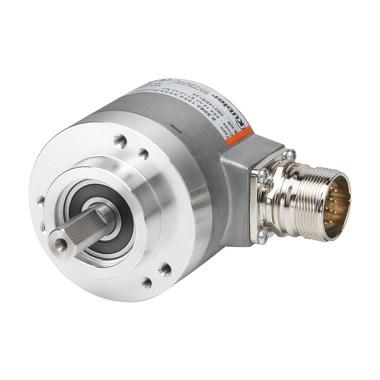

F5863

High precision
Resistant
Without gear with 100% magnetic insensitivity
Dimension Ø 58 mm
2.048 ppr incremental
17 bits singleturn
24 bits multiturn
Max 10 mm shaft, with flat surface
Max 3/8" shaft, with flat surface

Description

Intelligent Scan Technology™ – powerful and economical at the same time. The absolute encoders Multiturn Sendix F5863 / F5883 with patented Intelligent Scan Technology™ and SSI or BiSS interface are particularly high-resolution optical encoders without gears with 100% magnetic insensitivity. 41 bit total resolution, through hollow shaft up to 15 mm and variants with additional SinCos or RS422 incremental track.

Technical Specifications

Mechanical

Dimension	Ø 58 mm
Shaft type	6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface
Working temperature	-40 °C ... +85 °C
Flange type	Synchro flange / Servo flange Clamping flange Ø 58.00 mm
Connection types	Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial
Max. rotational speed	12.000 min-1
Protection category	IP65 IP67

Electrical

Power supply	5 V DC 10...30 V DC
Interfaces	SSI, binär SSI, gray SSI + 2048 ppr SinCos SSI + 2048 ppr RS422 BiSS
Resolution max.	2.048 ppr incremental 17 bits singleturn 24 bits multiturn
