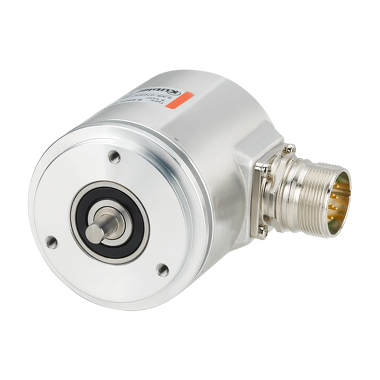

Kübler 5852
Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.
- High speed
- Resistant
- Dimension Ø 58 mm
- 14 bits singleturn
- Max 10 mm shaft, with flat surface
Kuebler : Encoders with parallel interface,the absolute encoders Singleturn 5852 / 5872 with parallel interface and optical sensor technology achieve a very high word exchange rate of 40 kHz at a resolution of max. 14 bits.
Technical Specifications
Mechanical
| Dimension | Ø 58 mm |
| Shaft type | 6 mm shaft, with flat surface 10 mm shaft, with flat surface |
| Flange type | Synchro flange / Servo flange Clamping flange Ø 58.00 mm |
| Connection types | Axial cable Radial cable M23 connector axial M23 connector radial |
| Max. rotational speed | 12.000 min-1 |
Electrical
| Working temperature | -20 °C ... +85 °C |
| Power supply | 5 V DC 10...30 V DC |
| Interfaces | Parallel Highspeed |
| Resolution max | 14 bits singleturn |
Applications
- High-speed absolute position on machine tools and indexing tables
- Fast parallel position data to controllers on presses
- Angle measurement on rotary and turntable axes
- Position feedback on robotics and handling equipment
