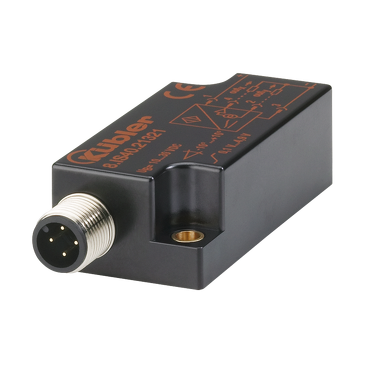

IS40 Analog

Teach function
Robust design
Compact design

Description

Kuebler Inclinometer IS40: The inclination sensors in the IS40 series can be used to measure 2-axis inclinations in the measuring range of ±10°, ±45° or ±60° as well as 1-axis inclinations of up to 360°. The compact and robust design makes the sensor a suitable angle measuring device in harsh environments.

Technical Specifications

Mechanical

Dimension	60 mm x 30 mm x 20 mm
Temperature range	-30 °C ... +70 °C
Protection category	IP68 IP69k

Electrical

Operating voltage	10 … 30 V DC
Measuring range	1-achsig 360° und 2-achsig ±60°
Interfaces	Analog 0 1...4 9 V Analog 4–20 mA
Type of connection	M12 connector
