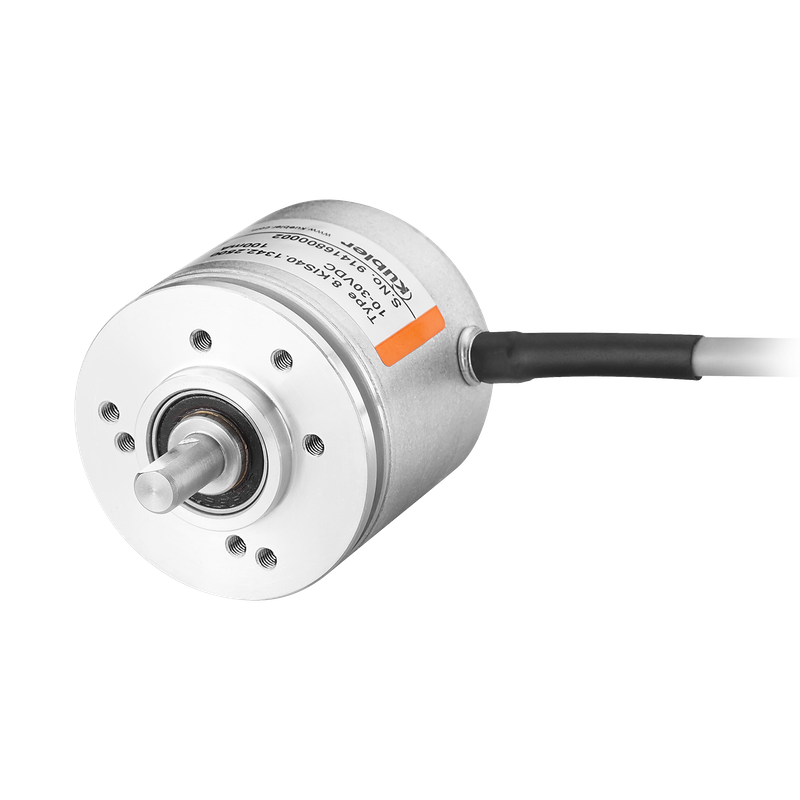

KIS40

Economical
For small devices and machines
Robust bearing structure
Dimension Ø 40 mm
2.500 ppr incremental
Max 8 mm shaft, with flat surface
Max 1/4" shaft, with flat surface

Description

The economical sensor solution. The incremental encoders type Sendix Base KIS40 / KIH40 with optical sensor technology have been designed for highest cost_x0002_effectiveness. They are available with a resolution of up to 2560 pulses per revolution. They are particularly suitable for tight mounting spaces and small machines and appliances.

Technical Specifications

Mechanical

Dimension	Ø 40 mm
Shaft type	6 mm shaft, with flat surface 8 mm shaft, with flat surface 1/4 " shaft, with flat surface
Flange type	Synchro flange / Servo flange Clamping flange Ø 40.00 mm
Connection types	Axial cable Radial cable
Max. rotational speed	4.500 min-1

Electrical

Working temperature	-20 °C ... +70 °C
Power supply	5 V DC 5...30 V DC 10...30 V DC
Interfaces	Gegentakt TTL / RS422 Open Collector
