Kübler Couplings
Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.
- Flexible Couplers for all types of Encoders, Potentiometers & Tachos.
- Types: Spiral, Slit, Bellow & Cardanic. Please Turn Over for figures for AF/ AS type couplings.
- Bores: Starting from 2mm upto 25mm bores available*, with key-way options.
- Bellow Couplers in Stainless Steel - imported from M/s Kubler, Germany.
- Extremely SHORT-DELIVERY periods., Standard models available EX-STOCK.
- Also available in Non-Standard sizes, please inform ID1, ID2, OD & Length needed.
| Metal Bellows | Speed :Max 8000 RPM Torque :Max 80 Ncm or 20Ncm Radial Displacement:+0.3mm Angular Displacement:+3 to +4 degree Diameter: 4....12mm OR 3....8mm |
| Spring Washer | Speed :Max 12000 RPM Torque :20Ncm Radial Displacement:+0.2mm or +0.3mm Angular Displacement:+2 to +3 degree Diameter:4....10mm OR 3....8mm |
| MATERIAL PROPERTIES | Aluminum |

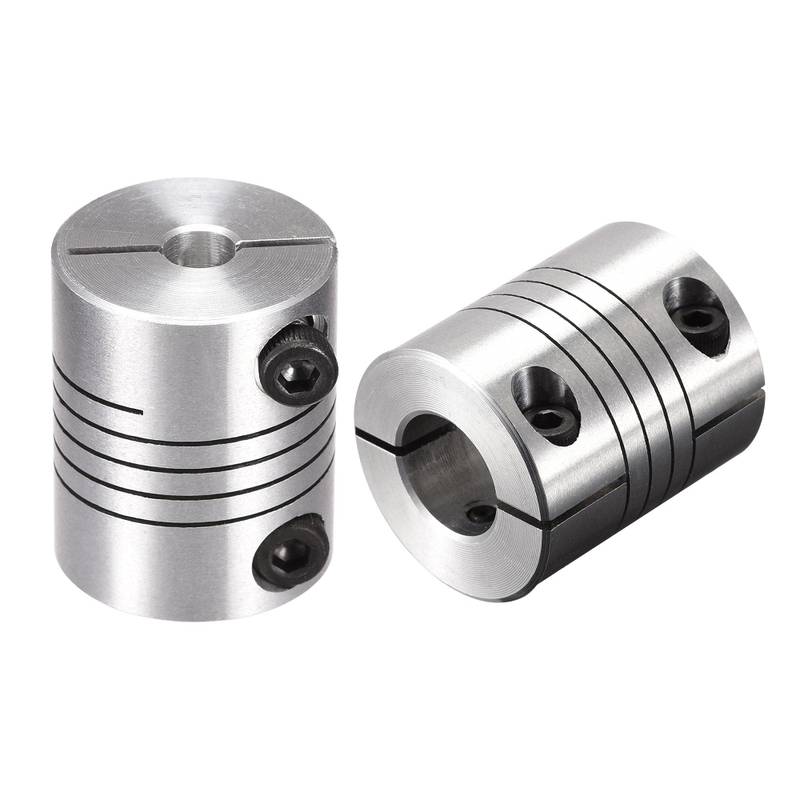

| Spiral (AF/AS types) |
|
Description
Flexible Couplers are used to avoid/reduce three different kinds of alignment errors i.e. Radial, Axial & Angular.Hence it reduces the load exerted on the bearings inside an Encoder & increases life of the Encoder.A Flexible Coupler acts as FUSE for an Encoder.Depending on the type of couplings particular attention should be paid to radial shaft displacement.Couplings have to types: 1)AF- TYPE FLEXIBLE COUPLER 2)AS-TYPE FLEXIBLE COUPLER
Applications
- Connecting encoders to motor and machine shafts
- Compensating shaft misalignment on encoder installations
- Coupling potentiometers and tachogenerators to drives
- Encoder retrofits on machine tools and conveyors
