KIH40
Kübler

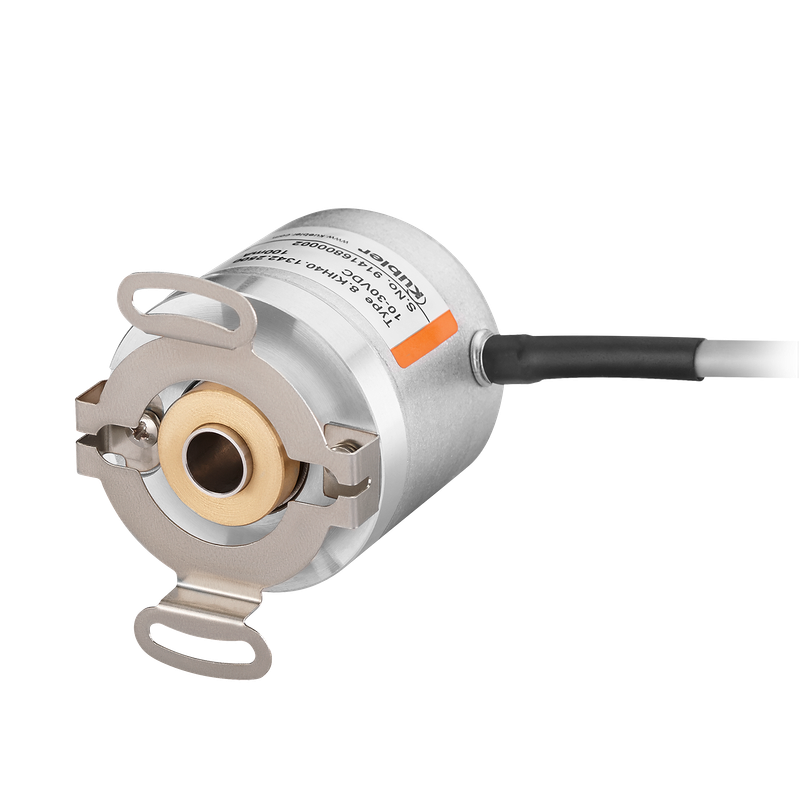

Kübler KIH40

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Economical
  • For small devices and machines
  • Robust bearing structure
  • Dimension Ø 40 mm
  • 2.500 ppr incremental
  • Max 8 mm hollow shaft, blind hole
  • Max 1/4" hollow shaft, blind hole
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Kuebler The economical sensor solution. The incremental encoders type Sendix Base KIS40 / KIH40 with optical sensor technology have been designed for highest cost_x0002_effectiveness. They are available with a resolution of up to 2560 pulses per revolution. They are particularly suitable for tight mounting spaces and small machines and appliances.

Technical Specifications

Mechanical

DimensionØ 40 mm
Shaft type8 mm hollow shaft, blind hole 1/4 " hollow shaft, blind hole
Flange typeØ 40.00 mm Ø 46.00 mm
Connection typesAxial cable Radial cable
Max. rotational speed4.500 min-1

Electrical

Working temperature-20 °C ... +70 °C
Power supply5 V DC 5...30 V DC 10...30 V DC
InterfacesGegentakt TTL / RS422 Open Collector

Applications

  • Direct mounting on small motor shafts with blind hollow shaft
  • Speed feedback on compact machines and appliances
  • Positioning on small conveyors and feeders
  • Tight installation spaces on OEM equipment
