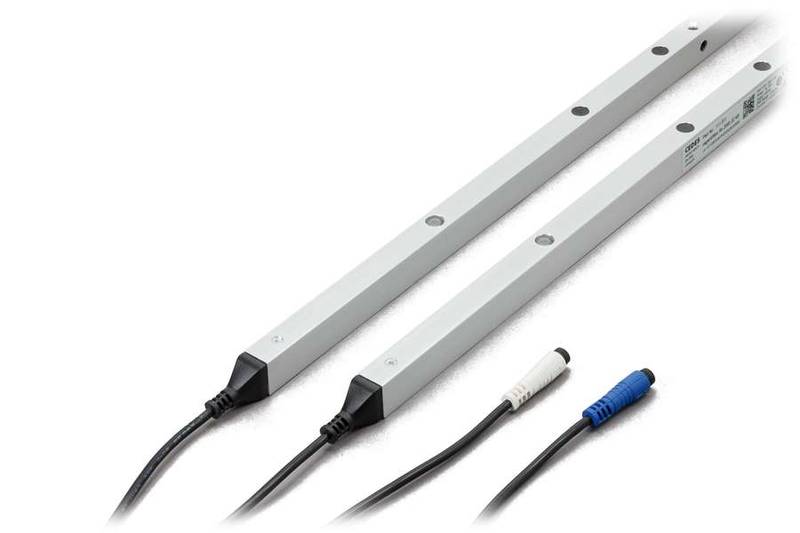

Cegard/Mini
- Low energy consumption
- Ideal for both static and dynamic applications
- Integrated controller with LED status indicator
- Short-circuit-proof semiconductor-output PNP/NPN (push-pull)
- Requires no grounding (earth)
- Selectable monitoring height of either 1,582 mm or 1,822 mm
- IP65 (Standard) and IP67 (waterproof) versions available
- ATEX-version available
- Edge can be front or side mounted
Description
CEDES Light Curtain Sensor: Used for applications like Door safeguarding in elevator facilities. The cegard/Mini’s robust design is the key to its market-leading quality. This makes it the most cost-efficient solution for elevator door safeguarding.
Technical Specifications
Mechanical
| Dimensions (w × h × l) |
|
| RoHS | 2011/65/EU |
Electrical
| Operating range | 0 ... 4 m |
| Supply voltage USP | 10 ... 30 VDC |
