Cedes

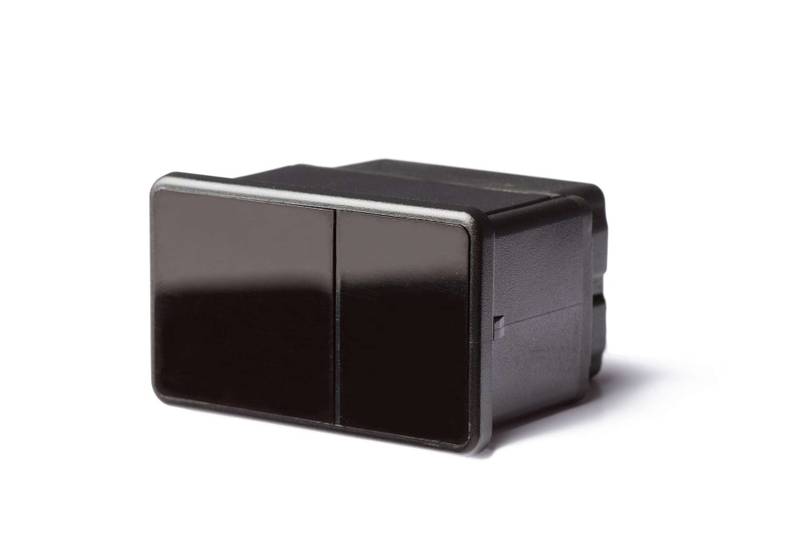

TOF/Start-EA
- Excellent detection capability, independent of
- reflectance
- Ignores cross-traffic via intelligent direction
- recognition
- Individual setting of the detection area
- Detection area operates with all types of background
- Insensitive to ambient light
Description
The TOF/Start-EA (Entrance Automation) is a compact yet powerful sensor which detects people and objects and reliably triggers an opening signal. The sensor has been specially developed as a door opener for both pedestrian doors and industrial doors. Its TOF technology enables the TOF/Start-EA to operate with all types of backgrounds without any need to recalibrate. Its key advantage is its ability to reliably distinguish between traffic passing by (cross-traffic) and traffic that intends to go through the door. This ability to automatically ignore cross-traffic greatly boosts energy-saving and reduces mechanical stress on the doors caused by unnecessary openings.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | Polycarbonate |
| Dimensions | 57 × 34 × 44.5 mm (w × h × l) |
| Housing color | Black |
| Operating Temperature | -20 °C … +65 °C |
Electrical
| Enclosure rating | IP65 |
| Operating voltage | 24 VDC ±20% |
| Current consumption at 24 VDC | 50 mA (peak max. 0.5 A) |
| Max. response time | 200ms/400ms |
| Min. switching time | 200 ms |
| Power-on time | 1 s |
