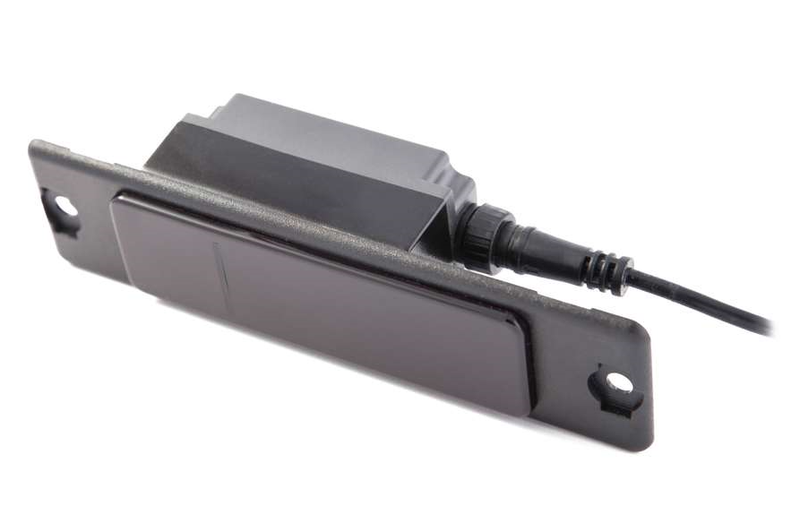

IMS 100 pro
- Automatic door recognition using TOF technology
- Offers double safeguarding when combined with light curtain
- Extremely reliable object detection using TOF technology
- No need to configure the monitored area
- Ideal for modernization and new facilities efficient Prevents accidents
- Prevents damage to elevator
- doors
- Entrance area monitoring reduces door- opening tim
Description
Entrance area monitoring for all types of elevators, in particular those in hospitals, retirement homes and production facilities
Technical Specifications
Mechanical
| Operating range | optical | Detection height 0.6 ... 2.5 m Detection area at 2 m 200 mm x 900 mm Min. object detection at 2.5 m 50 mm |
| Dimensions (l × h × w) | 132 × 36 × 34 mm |
| Material Properties | Polycarbonate |
| Protection category | IP65 |
| Temperature range | -20 °C … +60 °C |
Electrical
| Supply voltage USP | 24 VDC ±20% |
| Current consumption | 200 mA |
| Output | PNP |
