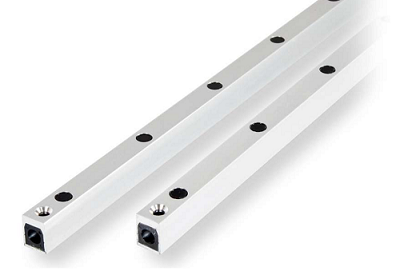

Grid scan/Mini

Criss-cross beams
SIL 2 certified (TÜV approved)
FSS version fulfills SIL 2 without testing
Direct integration into the door edge (SB and DB types)
Door speeds up to 1.6 m/s
Waterproof housing (IP67) and very high light reserve make the GridScan/Mini
insensitive to dust, dirt and water
Electrical synchronization for increased light and strobe immunity
Short-circuit proof semiconductor output PNP/NPN (push-pull) or FSS output
Cross section only 12 mm × 16 mm

Description

CEDES : The GridScan/Mini is an extremely compact SIL 2-certified safety light curtain. Its door blanking function allows it to be integrated into the door design. The system with an FSS output fulfills EN 13849-1 Cat. 2 without testing.

Technical Specifications

Mechanical

Operating range \| optical	1... 10 m
Cross section	12 mm × 16 mm
Certificates	CE TÜV
Safety category	EN ISO 13849-1:2015 Cat. 2 PL d EN 61508:2010 SIL 2 EN 12978:2003, +A1:2009 EN 12453:2017 E device

Electrical

Supply voltage USP

10 ... 30 VDC
