TOF niva
Cedes

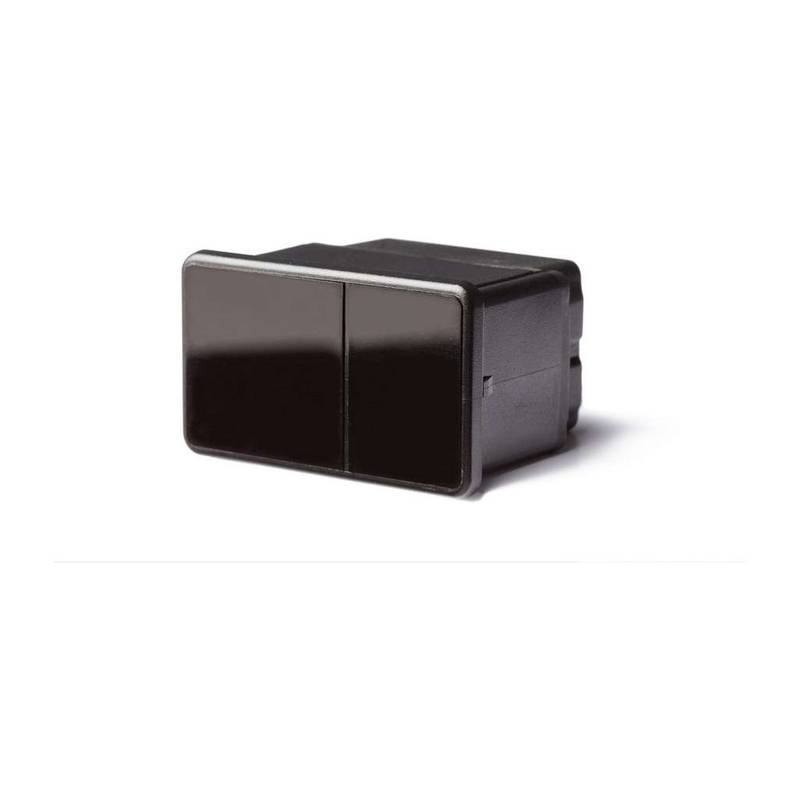

Cedes TOF niva

Genuine Cedes product, supplied in India by Rajdeep Automation, the authorised Cedes distributor.

  • Excellent detection capability, independent of reflectance
  • Individual setting of the detection area
  • Detection area operates with all types of background
  • Insensitive to ambient ligh
Not sure this is the right model? Read the elevator & door safety sensors selection guide →

Description

The TOFniva is a compact yet powerful and flexible range of sensors. These detect people and objects within a planar area of max 2.0 m by 2.0 m. TOF technology enables TOFniva sensors to operate with all types of backgrounds without any need to recalibrate. Their main feature is their ability to easily adapt to different detection field needs – this is done using two potentiometers for x-axis and y-axis. TOFniva sensors are available with and without blanking in both center and side mounted versions.

Technical Specifications

Mechanical

Operating range | optical
  • Detection area - Length Min. 0 ... 400 mm Max. 0 ... 2
  • 000 mm - Width Min. 0 ... 400 mm Max. 0 ... 2
  • 000 mm
Dimensions (w × h × l)57 × 34 × 44.5 mm
Material PropertiesPolycarbonate
Protection categoryIP65
Temperature range-20 °C … +65 °C

Electrical

Supply voltage USP24 VDC ±20%
Current consumption50 mA (peak max. 0.5 A)
OutputPNP/NPN (push-pull)

Applications

  • Presence detection in a configurable area up to 2 m by 2 m
  • Safeguarding automatic doors and gates against closing on people
  • Object detection at industrial doors with any background
  • Monitoring entrance areas of buildings and personnel sluices
  • Detecting people near sliding and swing door leaves
