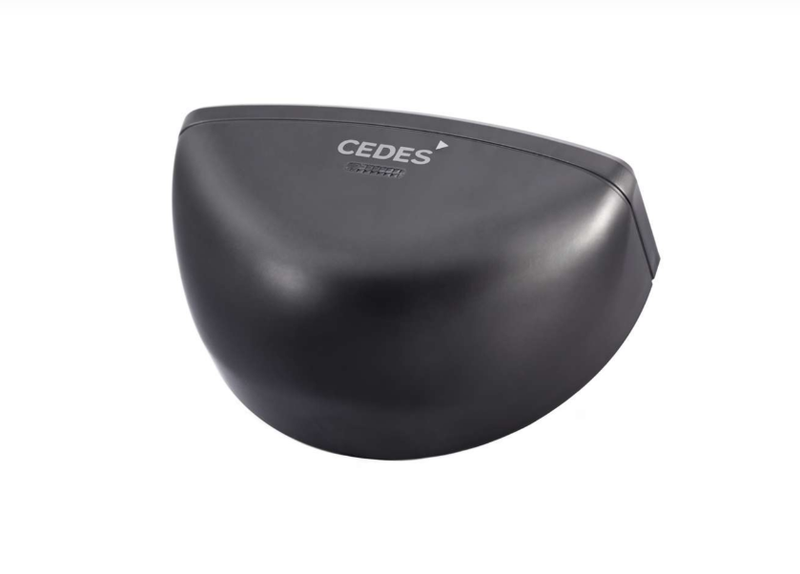

RDS100
- Easy mounting concept without expensive kits
- Adjustable detection angle
- Wide detection area
- Very compact sensor
Description
Cedes: The RDS 100 radar sensor provides very reliable door activation. The sensor can be used for all automatic doors, thanks to his large detection area of 4 x 2 m at a mounting height of 2.2 m.
Technical Specifications
Mechanical
| Material Properties | PP |
| Temperature range | -20 °C … +55 °C |
| Protection category | IP54 |
| Mounting height | From 1.8 m up to 4 m |
| Dimensions (w × h × l) | 76 × 48 × 116 mm |
Electrical
| Voltage | 10 ... 30 VDC / 12 ... 24 VAC |
| Output | Solid-state relay |
| Indication LED (red) | LED on Object detected LED off No object detected |
More from Cedes
TOF niva
Excellent detection capability, independent of reflectance · Individual setting of the detection area…
View Details →

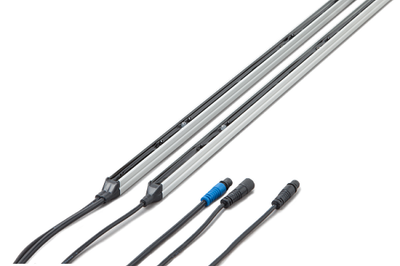

Grid scan / Pro
