Easygard
Cedes

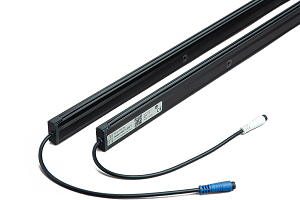

Cedes Easygard

Genuine Cedes product, supplied in India by Rajdeep Automation, the authorised Cedes distributor.

  • Ideal for both: static and dynamic installations
  • Suitable for center and side opening
  • Multiple criss cross beams for a reliable detection
  • Criss-cross light beams remain fully active until doors are closed
  • Easy installation
  • Different system types for cost optimization
  • Optional power converter
Not sure this is the right model? Read the elevator & door safety sensors selection guide →

Description

CEDES : easygard100 systems are suitable for any static or dynamic installation. Different output logics and types complete the product range. The different system types have been developed to offer the best possible and most cost-efficient solution for each application. The sensors can be wired directly into the elevator door controller or via an external CEDES SPS (Switching Power Supply) with relay output for high voltage applications.

Technical Specifications

Mechanical

Dimensions
  • 11 × 24.5 × 2
  • 000 mm (w × h × l)
Housing materialAluminum, black powder coated
Enclosure ratingIP54
Temperature range-20  °C … +60  °C / -40  °C … +75  °C (operation / storage)

Electrical

Supply voltage USP10 ... 30 VDC
Response time< 100 ms
OutputPNP or NPN
Current consumption50 mA

Applications

  • Door edge safety detection on passenger elevators
  • Protecting passengers at centre-opening and side-opening lift doors
  • Criss-cross light curtain retrofit on existing elevator installations
  • Obstruction detection on goods and service lifts in commercial buildings
  • Direct wiring into elevator door controllers for new lift installations
