Grid scan / Pro
Cedes

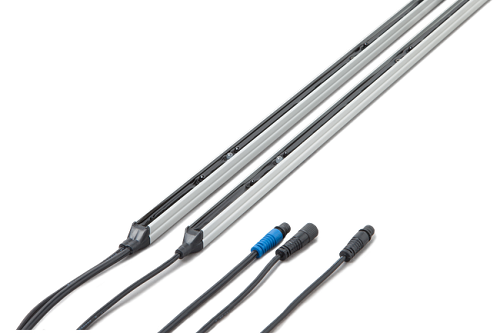

Cedes Grid scan / Pro

Genuine Cedes product, supplied in India by Rajdeep Automation, the authorised Cedes distributor.

  • TÜV – EC Type examination certified
  • SIL 2 certified
  • Direct integration into the door edge due to door blanking
  • Combined output with PNP/NPN (push-pull) and FSS
  • Changeable operation between blanking and static mode
  • Easiest alignment
  • 2nd output for additional information
  • Ideal for modernization projects due to FSS control unit
  • Door closing speed up to 1.6 m/s
  • Fulfills SIL 2 without testing if FSS output selected
Not sure this is the right model? Read the elevator & door safety sensors selection guide →

Description

CEDES Light Curtain Sensor: GridScan/Pro is a highly reliable SIL 2-certified safety light curtain for industrial doors. Equipped with EC type examination certification, it can be used at any door. Thanks to its multi-output design and the changeable operating mode (from blanking to static), the GridScan/Pro can be integrated in all types of door control systems.

Technical Specifications

Mechanical

Cross section12 mm × 14.5 mm
Safety category
  • EN ISO 13849-1:2015
  • Cat. 2
  • PL d EN 61508:2010
  • SIL 2 EN 12978:2003, +A1:2009 EN 12453:2017 E device

Electrical

Operating range1... 10 m
Supply voltage USP10 ... 30 VDC

Applications

  • SIL 2 safeguarding of industrial doors per EN 12453
  • Door-edge protection using door blanking on sectional and rolling doors
  • Modernising safety on existing industrial door installations
  • Static light curtain protection at gates and warehouse dock doors
  • Wide doorways up to 10 m operating range in logistics centres
