Kübler
5000
- Unique variety of variants
- Particularly resistant
- Dimension Ø 50 mm
- 5.000 ppr incremental
- Max 12 mm shaft, with flat surface
- Max 3/8" shaft, with flat surface

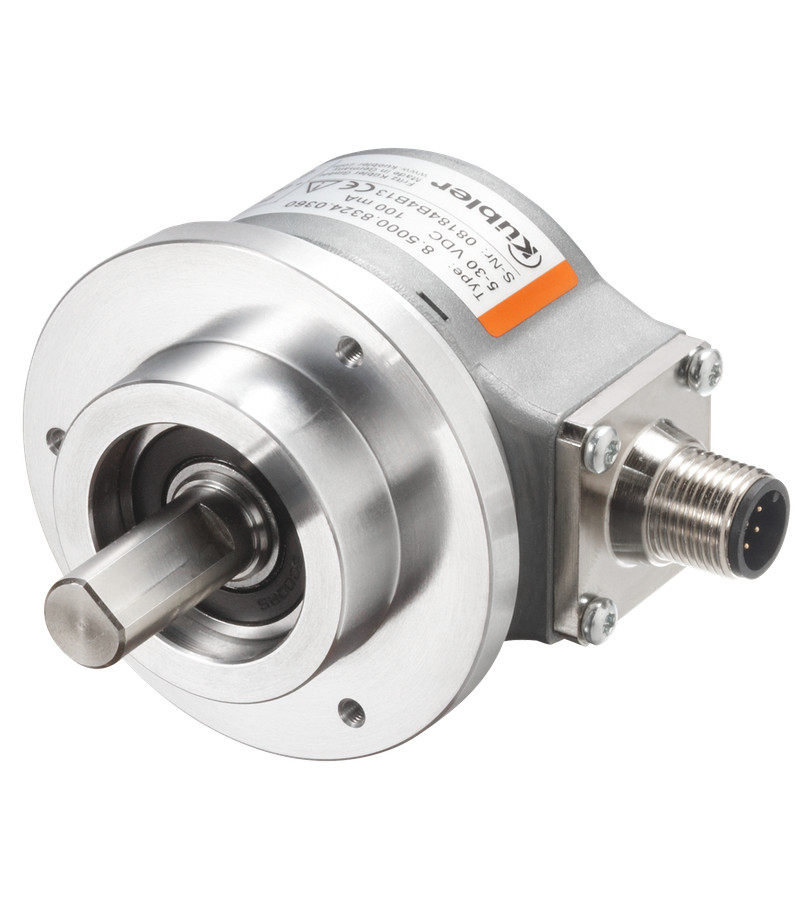

Kuebler: Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40 °C to +85 °C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options.
Technical Specifications
Mechanical
| Dimension | Ø 50 mm |
| Shaft type | 6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 11 mm shaft, with flat surface 12 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface |
| Flange type | Synchro flange / Servo flange Clamping flange Square flange Euro flange |
| Connection types | Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial MIL connector |
| Max. rotational speed | 12.000 min-1 |
Electrical
| Working temperature | -40 °C ... +85 °C |
| Power supply | 5 V DC 5...30 V DC 10...30 V DC |
| Interfaces | Gegentakt TTL / RS422 Open Collector |
