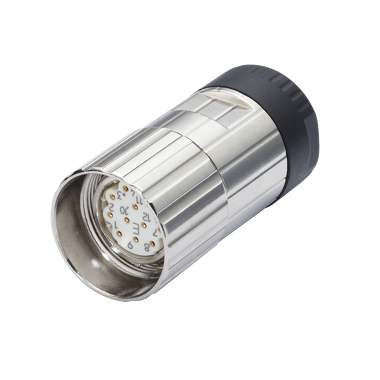

Field-wireable M23 Female Connector
Technical Specifications
Mechanical
| Type | M 23 |
| Protection category | IP67 |
| Temperature range | -20 °C ... +130 °C [-4 °F ... +266 °F] |
| MATERIAL PROPERTIES | metal |
Electrical
| Pin option | Counting direction CW |
| Interfaces | HTL TTL / RS422 SinCos Open Collector SSI SSI + 2048 ppr SinCos SSI + 2048 ppr RS422 BiSS BiSS + 2048 ppr SinCos BiSS + 2048 ppr RS422 |
| CONNECTION TECHNOLOGY | Solder connections |
