Kübler 5015

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Male connector
  • Straight
  • 12-pin
  • Metal
  • Solder connection
  • Field-attachable connections
Not sure this is the right model? Read the rotary encoders selection guide →

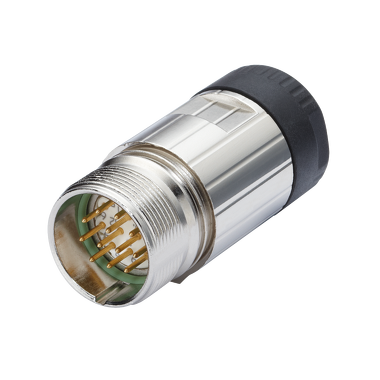

Field-wireable M23 Female Connector

Technical Specifications

Mechanical

TypeM 23
Protection categoryIP67
Temperature range-20 °C ... +130 °C [-4 °F ... +266 °F]
MATERIAL PROPERTIESmetal

Electrical

Pin optionCounting direction CCW
InterfacesHTL TTL / RS422 SinCos Open Collector SSI SSI + 2048 ppr SinCos SSI + 2048 ppr RS422 BiSS BiSS + 2048 ppr SinCos BiSS + 2048 ppr RS422
CONNECTION TECHNOLOGYSolder connections

Applications

  • Field wiring of encoder cables using M23 12-pin male connectors
  • Making extension cables between encoders and drives
  • Repairing encoder cabling on machine tools and automation lines
  • Connecting encoder signals in IP67 rated installations
