Kübler

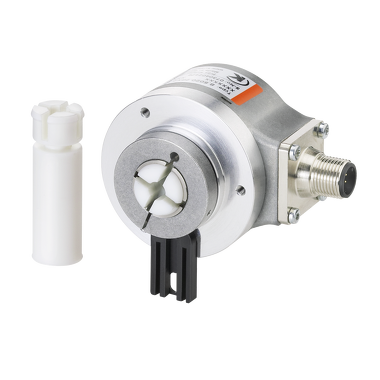

5020
- Unique variety of variants
- Particularly resistant
- 24one delivery promise - temporarily not available!
- Dimension Ø 50 mm
- 5.000 ppr incremental
- Max 15 mm hollow shaft, through
- Max 5/8" hollow shaft, through
Kuebler : Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40 °C to +85 °C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options.
Technical Specifications
Mechanical
| Dimension | Ø 50 mm |
| Shaft type | 6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 1/4 " hollow shaft, through 3/8 " hollow shaft, through 1/2 " hollow shaft, through 5/8 " hollow shaft, through |
| Flange type | Spring element, long Stator coupling Torque brackets long Ø 50.80 mm Ø 57.20 mm Ø 63.00 mm Ø 65.00 mm |
| Connection types | Axial cable Radial cable Tangential cable M23 connector radial M12 connector radial MIL connector |
| Max. rotational speed | 12.000 min-1 |
Electrical
| Working temperature | -40 °C ... +85 °C |
| Power supply | 5 V DC 5...30 V DC 10...30 V DC |
| Interfaces | Gegentakt TTL / RS422 Open Collector |
