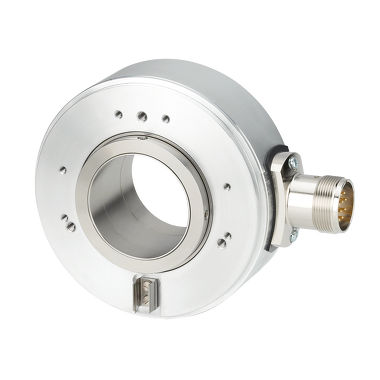

Kübler A020
- Space saving
- Compact solution
- Reliable
- Dimension Ø 100 mm
- 5.000 ppr incremental
- Max 42 mm hollow shaft, through
- Max 1" hollow shaft, through
Description
Kubler Large hollow shaft up to 42 mm. The incremental encoder A020 with optical sensor technology is available with through hollow shaft up to a maximum diameter of 42 mm. With an installation depth of only 43 mm, it is ideally suited for mounting on large shafts even in tight installation situations.
Technical Specifications
Mechanical
| Dimension | Ø 100 mm |
| Shaft type | 20 mm hollow shaft, through 24 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 30 mm hollow shaft, through 38 mm hollow shaft, through 40 mm hollow shaft, through 42 mm hollow shaft, through 1 " hollow shaft, through |
| Flange type | Ø 100.00 mm Ø 115.00 mm |
| Connection types | Radial cable M23 connector radial M12 connector radial |
| Max. rotational speed | 3.000 min-1 |
Electrical
| Working temperature | -40 °C ... +70 °C |
| Power supply | 5...30 V DC 10...30 V DC |
| Interfaces | Gegentakt TTL / RS422 |
Applications
- Feedback on large motor and roller shafts up to 42 mm
- Speed monitoring on steel and paper mill rollers
- Tight installations needing only 43 mm depth
- Elevator and crane drive shaft speed feedback
- Large shaft motors in cement and textile plants
