AG03/1
Siko

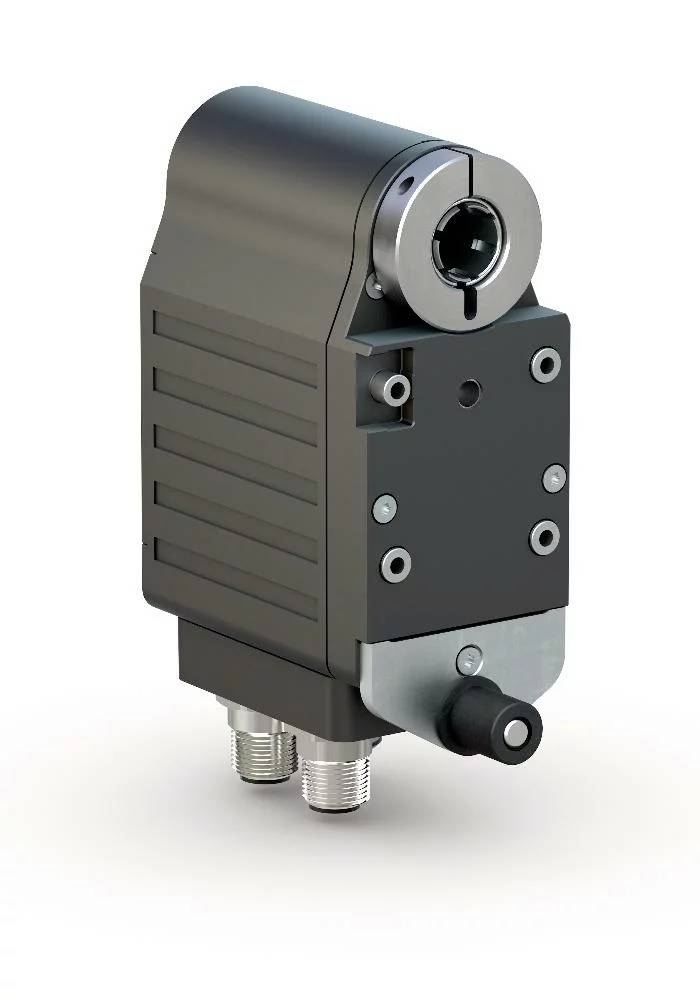

Siko AG03/1

  • Space-saving, easy mounting
  • Through hollow shafts up to max. ø14 mm
  • Brushless 50 W, 24 V EC motor with long service life
  • Integrated power and control electronics with inverse polarity and overload protection
  • Integrated absolute position encoder on the output shaft
  • interfaces CANopen, Profibus-DP, RS485/SIKONETZ5 or IO-Link
  • IO-Link optionally with 1 cable or 2 cable interface
  • Industry 4.0 ready

Description

Siko: Positioning drive AG03/1 Fieldbus

Technical Specifications

Mechanical

Protection categoryIP50 / IP54 / IP65
Ambient conditions | Mechnical0 … 45 °C

Electrical

Supply Voltage24 V DC ±10 %
Rated current2.4 A ±10 %
Resolution1600 Increments/revolution
Communication
  • CANopen
  • Profibus-DP
  • RS485/SIKONETZ5
  • IO-Link

Applications

  • Automatic format changeover on packaging and labelling machines
  • Motorised adjustment of guide rails and stops on bottling lines
  • Positioning of adjustment spindles on printing and converting machines
  • Format setting on woodworking and textile machines via CANopen or Profibus
  • IO-Link controlled spindle positioning on special purpose machines
  • Repeatable size changeover on pharma blister and cartoning machines
