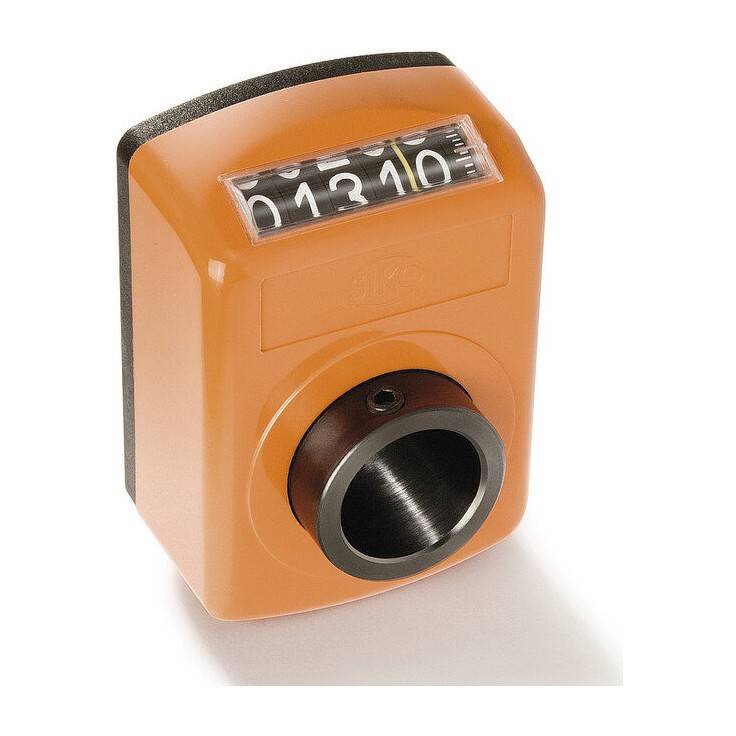

DA09S
- Most-used size in slim design
- Hollow shaft, max. Ø 20 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Magnifying function for good readability
- Stainless-steel driving shaft as an option Axial seal, dustproof and splash-proof Clamping plat
Description
Siko : Digital position indicator It is a basic device with 5 decades and fine reading
Technical Specifications
Mechanical
| Digit height | ~7 mm |
| Weight | 0.1 kg |
| Counter | 5 decades, fine reading |
| Sight Window | plastic |
Electrical
| Temperature range | 0 … 80 °C |
