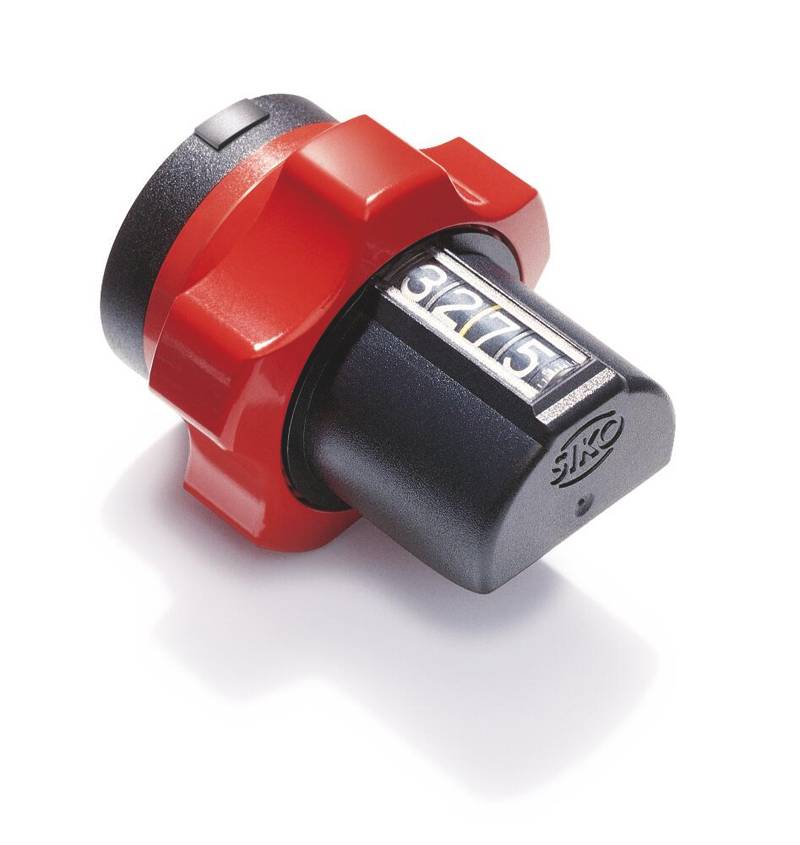

DK02
- Control knob with integrated position indicator
- Side display (left or right)
- Shaft support: max. Ø 14 mm
- Counter with 4 decades and fine reading
- Various display values
- Star wheel as an option
| Weight | 0.06 kg |
| Counter | 4 Decades with fine reading |
| Display | Side display (left- or right-side), mechanical-digital |
| Housing | plastic |
| Digit height | ~6 mm |
| Sight window | plastic (mineral glass as an option) |
Description
The SIKO DK02 is a control knob with an integrated mechanical-digital position indicator and side display (left- or right-side mounting). It mounts on shafts up to Ø 14 mm and shows the spindle position on a 4-decade counter with fine reading, with various display values available per revolution. Options include a star wheel, mineral glass sight window and different counting directions. Supplied and supported in India by Rajdeep Automation.
