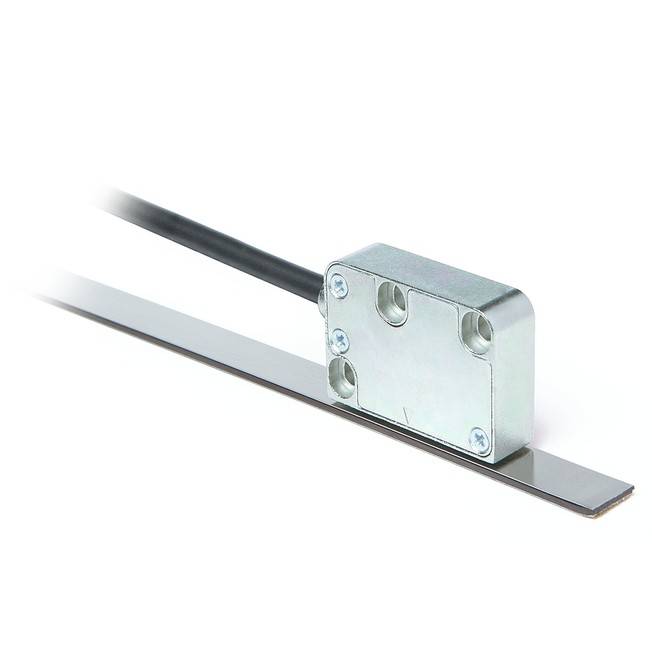

MSK320R
- Enhanced safety owing to independent output channels 2 magnetic sensors and 2 signal conditioners in one sensor head
- Works with MB320/1 magnetic tape, MRI01 or MR320 magnetic ring, MBR320 magnetic tape ring
- Reading distance ≤2 mm Repeat accuracy of ±1 increment extensive application temperature range of -40 … 85° C
- Cost advantage by installation of one MSK320R sensor instead of two MSK320 sensors
Description
Siko Incremental Magnetic sensor: With redundant signal outputs
Technical Specifications
Mechanical
| Material Property | mechanical data | zinc die cast |
| Connection types | Open cable end |
| Protection category | IP 67 |
Electrical
| Supply Voltage | 4.5 … 30 V DC (reverse polarity protected) |
| Current consumption | <25 mA, <75 mA |
| Resolution |
|
