SIKO SGH10

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Measuring range 0 … 1000 mm (39.37 inches)
  • Absolute measuring system
  • CANopen interface, analog: Current and voltage
  • Operating voltage 9 ... 32 VDC
  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
  • High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
  • High electro-magnetic compatibility
  • High shock and vibration resistance
  • With PURE.MOBILE technology
Not sure this is the right model? Read the linear position measurement selection guide →

Description

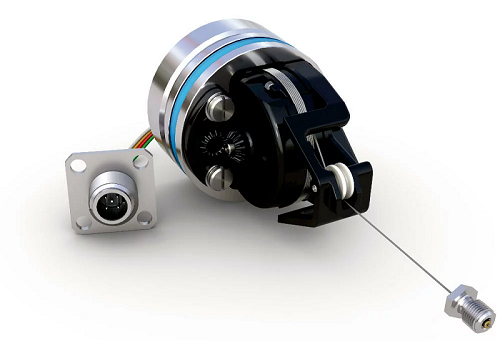

Siko Draw-Wire Encoder SGH10 Position sensor for hydraulic cylinders with measuring lengths up to 1000 mm.The SGH wire-actuated encoder measures the absolute, direct cylinder stroke in the hydraulic cylinder. Cost-intensive drilling of the piston is no longer required thanks to the new measurement system. As a result there are lower integration costs compared with other measurement systems and weakening of the piston is effectively avoided. The highlight: The measurement system can even be used in telescopic cylinders! In the framework of SPS IPC Drives 2015, exhibition and online visitors nominated the SGH10 as the winner of the DirectIndustry i-NOVO Award in the TECH category.

Technical Specifications

Mechanical

MATERIAL PROPERTIESsynthetic
Protection categoryIP6K9K
Mounting categoryInternal mounting
Measuring length from 0 to ... mm0--1000mm

Electrical

Working temperature-40 … 105 °C
Interfaces
  • CANopen
  • CiA 301
  • CiA 305
  • CiA 406
Operating voltage9 ... 32 VDC
Current consumption<32 mA

Applications

  • Stroke measurement inside hydraulic cylinders up to 1000 mm
  • Cylinder position on mobile and construction machinery
  • Ram position feedback on hydraulic presses and forming machines
  • CANopen cylinder position for vehicle controls
