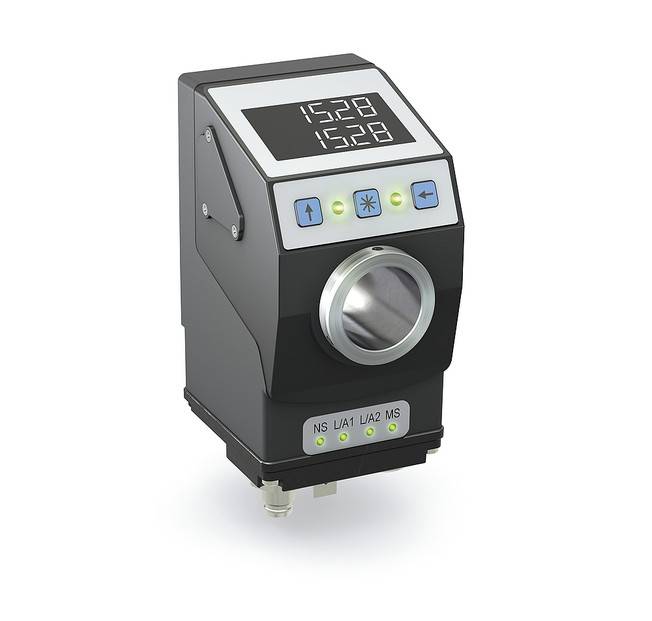

SIKO AP20 & AP20S
Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.
- Integrated Industrial-Ethernet-Fieldbus
- Backlit two-row LCD Display of target and actual value displays with integrated alignment Stainless-steel hollow shaft ø20 mm, up to ø25.4 mm as an option
- Robust sensor technology unit thanks to magnetic scanning
- User guidance through status LED
- Mechanically compatible with the DA09S and AP10 position indicators
- IP53 protection class, IP65 as an option
Description
Siko Electronic position indicator: AP20 For absolute spindle adjustments with integrated Industrial Ethernet interface. AP20S For absolute linear adjustments, integrated Industrial Ethernet interface. Industry 4.0 ready
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | reinforced plastic |
| temperature range | 0 … 60 °C |
| Protection category | IP53/IP65 |
Electrical
| Operating voltage | 24 V DC |
| Current consumption | 100 mA |
| Communication |
|
| Display/range | 6-digit LCD 14-segment, ~8 mm high |
| Scanning | • AP20 -magnetic • AP20S - external sensor (MS500H / GS04) |
Applications
- Format changeover on networked machines over PROFINET or EtherCAT
- Absolute spindle adjustment monitoring with the AP20
- Linear axis adjustment with the AP20S variant
- Verifying operator settings on packaging and printing lines
- Industry 4.0 machine setup tracking on OEM equipment
