DA10
SIKO

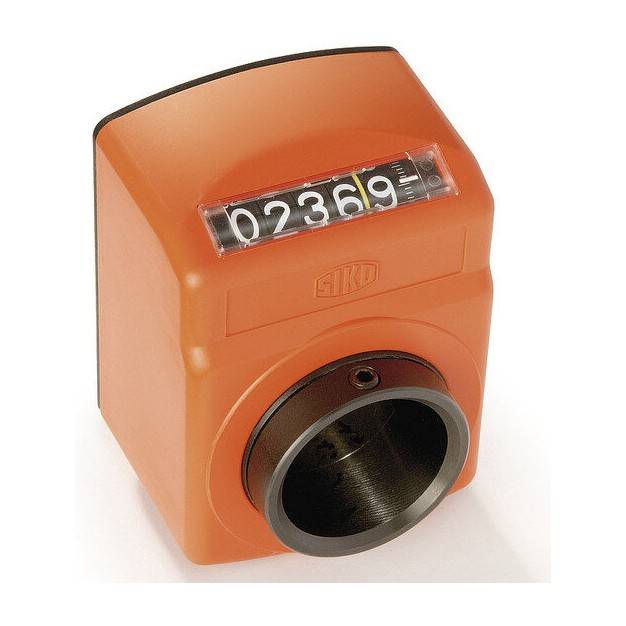

SIKO DA10

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Designed for large diameters
  • Hollow shaft, max. Ø 30 mm
  • Counter with 5 decades and fine reading
  • Display can be designed for “mm” or “inch”
  • Magnifying function for good readability
  • Stainless-steel driving shaft as an option Axial seal, dustproof and splash-proof
Not sure this is the right model? Read the position indicators selection guide →

Description

Siko : Digital position indicator For large shaft diameters

Technical Specifications

Mechanical

Digit height~7 mm
Weight0.1 kg
Counter5 decades, fine reading
Sight Windowplastic

Electrical

Temperature range0 … 80 °C

Applications

  • Position readout on large spindles up to 30 mm
  • Manual format setting on printing and paper machines
  • Guide and stop adjustment on heavy packaging equipment
  • Splash-prone installations using the axial seal
