DE10P
SIKO

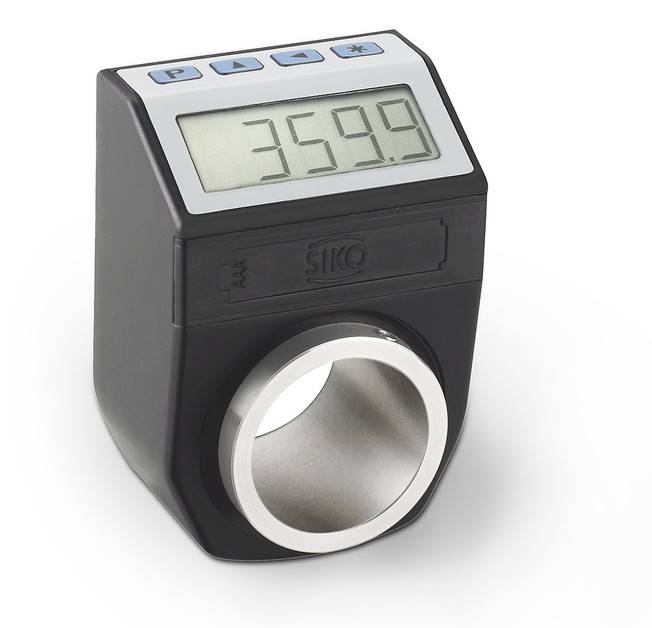

SIKO DE10P

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Freely programmable via keys on the device
  • Hollow shaft max. Ø 30 mm
  • Hollow shaft made of stainless steel
  • LCD display with 6 digit and special characters Digit height approx. 11 mm
  • Long battery service life Easily exchangeable batteries (Standard AAA)
  • Incremental measurement function, display of absolute value High protection category
Not sure this is the right model? Read the position indicators selection guide →

Description

Siko Electronic position indicator: It is a freely programmable and battery-powered position indicator provides maximum flexibility

Technical Specifications

Mechanical

MATERIAL PROPERTIESPlastic
Protection categoryIP51/IP65

Electrical

Temperature range-10 … 60 °C
Operating voltageintegrated battery compartment exchangeable by customer Operating voltage 2 x 1.5 VCD, > 1000 mAh 2 x AAA batteries, ~2 years service life

Applications

  • Format adjustment on packaging and labelling machines
  • Position display on spindles up to 30 mm diameter
  • Battery-powered readout on machines with no power at the axis
  • Stainless shaft installs on food and pharma machines
  • Manual setting of guide rails and stops
