LE100
SIKO

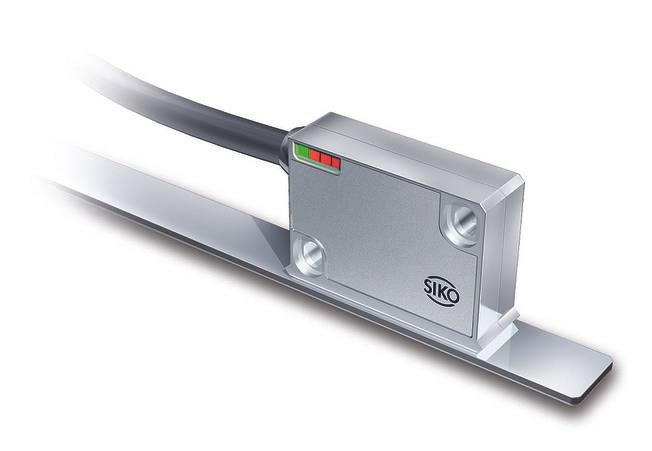

SIKO LE100

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Repeat accuracy max. ±1 μm
  • Status LED display Works with MB100/1 magnetic tape
  • Works with MBR100 magnetic tape ring
  • Reading distance ≤0.4 mm
  • Signal period 1000 μm
  • Output circuit sin/cos 1 VSS
  • Robust metal housing
Not sure this is the right model? Read the linear position measurement selection guide →

Description

Siko Incremental Magnetic sensor

Technical Specifications

Mechanical

Material Property | mechanical datazinc die-cast/aluminum, zinc die-cast
Connection typesopen cable end plug connector 7/8-pole
Protection categoryIP 67

Electrical

Supply Voltage
  • 10.5 … 30 V DC
  • 5 V DC ±5 %
Current consumption<25 mA, <50 mA
Resolution
  • 0.25
  • 1 mm

Applications

  • Sin/cos linear feedback for servo drives and controllers
  • Precision axis positioning on machine tools
  • Linear motor feedback on high-accuracy stages
  • Rugged linear measurement where glass scales may fail
