MS500H
SIKO

SIKO MS500H

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Compact design of sensor and connector
  • To be connected to AP10S or AP20S
  • To be connected to MA503/2 or MA504/1
  • Works with MB500/1 magnetic tape, MR500 magnetic ring, MBR500 magnetic tape ring
  • Reading distance ≤2 mm
Not sure this is the right model? Read the linear position measurement selection guide →

Description

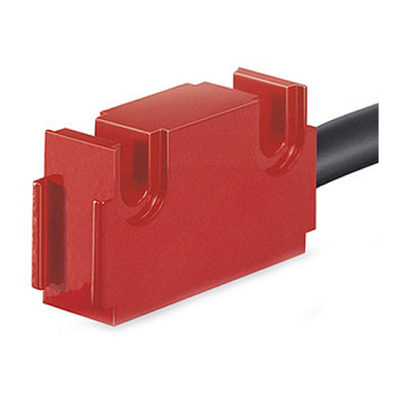

Siko Magnetic sensor: MS500H is a passive sensor with miniature design

Technical Specifications

Mechanical

Material Property | mechanical dataHousing : aluminum red, steel
Connection types
  • flat connector 8-pole
  • 1x pin (E16) M8 plug connector 6-pole
  • 1x pin (E15)
Protection categoryIP 67

Electrical

Supply VoltageTo be connected to AP10S or AP20S
Resolutiondepending on downstream electronic unit

Applications

  • Linear position sensing for AP10S and AP20S indicators
  • Magnetic tape position sensing on format adjustment axes
  • Compact sensing heads on small machine axes
  • Feeding MA503 or MA504 magnetic displays
