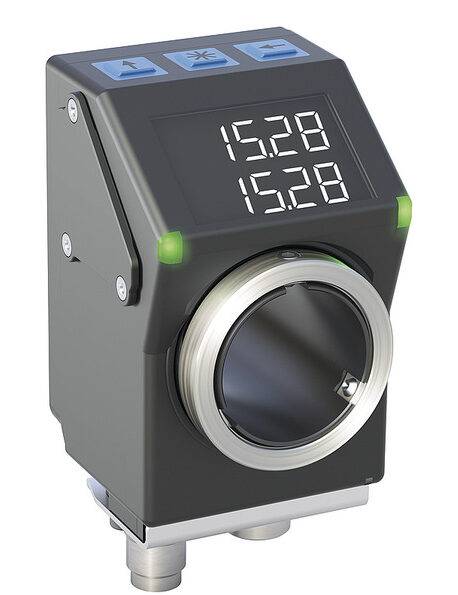

AP05 AP10 & AP10S

Electronic position indicator with bus/data interface
Backlit two-row LCD Display of target and actual value displays with integrated alignment
User guidance through status LEDs
Hollow shaft with Ø 20 mm and clamping ring made of stainless steel
Enhanced shock resistance owing to protective display glass
Integrated RS485 interface, CAN bus or IO-Link as an option
Robust sensor technology unit thanks to magnetic scanning
AP05 Mechanically compatible with the AP04 and DA04 position indicators IP53 protection class, IP65 as an option
AP10 Mechanically compatible with the DA09S position indicator

Description

Siko Electronic position indicator: It guides the user intuitively to the correct machine setting in the case of product or format change, integrated fieldbus interface or IO-link interface. Industry 4.0 ready

Technical Specifications

Mechanical

MATERIAL PROPERTIES	reinforced plastic
temperature range	0 … 60 °C
Protection category	IP53 IP 65

Electrical

Operating voltage	24 V DC
Current consumption	30 mA
Communication	RS485 CAN bus IO-Link
Display/range	• AP05 - 5-digit LCD 7-segment, ~6 mm height • AP10 & AP10S - 6-digit LCD 14-segment, ~8 mm high
Scanning	• AP05 AP10 -magnetic • AP10S - external sensor (MS500H / GS04)
