DE10
SIKO

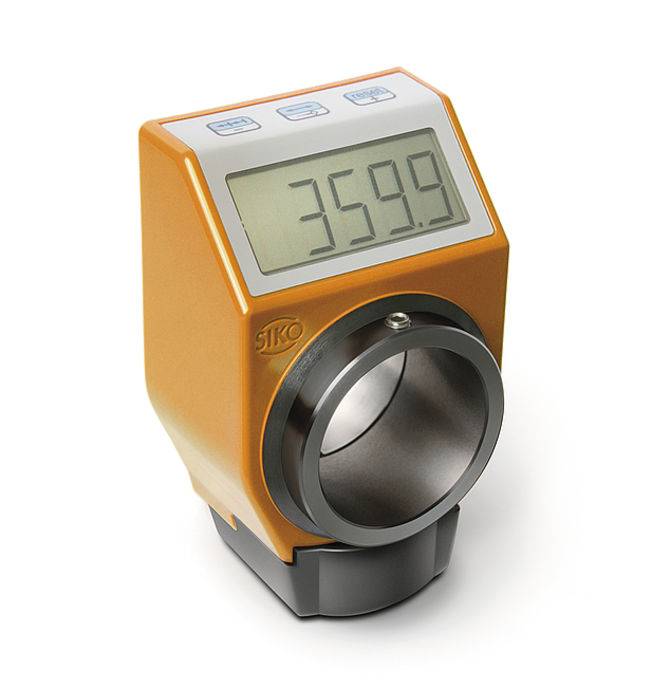

SIKO DE10

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Freely programmable electronic digital display for length or angular measurement
  • Freely programmable via the ProToolDE programming software
  • Hollow shaft, max. Ø 14 mm
  • LCD display with 5 digits and special characters Digit height approx. 8 mm
  • Reset, incremental measurement, offset via keyboard
  • Long battery life Easy battery change without dismantling of the device
Not sure this is the right model? Read the position indicators selection guide →

Description

Siko : Electronic position indicator It is a freely programmable and battery-powered position indicator for large shaft diameters

Technical Specifications

Mechanical

Protection categoryIP51
Speed≤600 rpm
Shaftblack-finished steel (supported in friction bearings)
Weight~0.1 kg

Electrical

Temperature range-10 … 60 °C
Operating voltage
  • lithium coin cell
  • 3 V
  • CR2032 type ~2-year service life lithium coin cell
  • 3 V
  • CR2477 type ~8-year service life
Display/display range5-digit LCD 7-segment, ~8 mm height

Applications

  • Format setting on packaging and printing machine spindles
  • Displaying angle or length positions on manual adjustment axes
  • Battery-powered position display on machines without wiring
  • Stop and fence positioning on woodworking machines
  • Hollow shaft mounting on spindles up to 14 mm
