DK01
SIKO

SIKO DK01

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Control knob with integrated position indicator
  • Front display
  • Shaft support: max. Ø 14 mm
  • Counter with 4 decades and fine reading
  • Various display values
  • Star wheel as an option
DisplayFront display, mechanical-digital
Weight0.06 kg
Counter4 decades with fine reading
HousingPlastic
HandwheelKnurled handle or star knob
Digit height~6 mm

Description

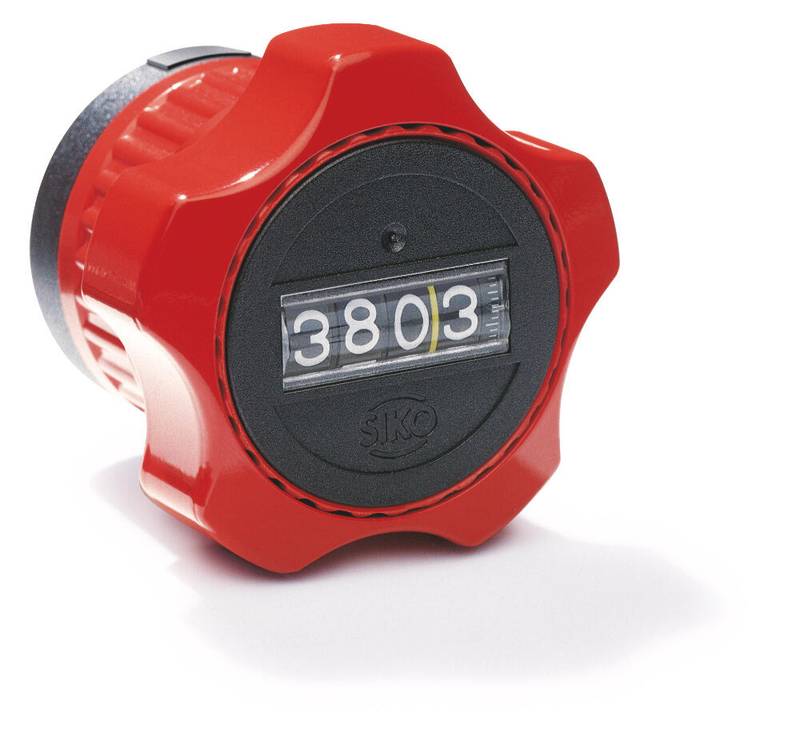

The SIKO DK01 is a control knob with an integrated mechanical-digital position indicator and front display. It mounts on shafts up to Ø 14 mm and shows the spindle position on a 4-decade counter with fine reading, with various display values available per revolution. Options include a star wheel, mineral glass sight window and different counting directions. Supplied and supported in India by Rajdeep Automation.

Applications

  • Manual spindle adjustment with position readout on packaging machines
  • Format setting with front display on woodworking machines
  • Repeatable manual setting of stops and guides on printing machines
  • Spindle position indication on textile and special purpose machines
