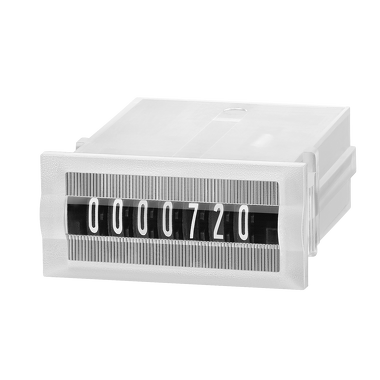

Electromechanical Counter

<span data-sheets-root="1">• High shock resistance
Retains value in the event of power failure
Display 7-digit number, mech. roller counter
Low power consumption
Adding
Different front panel sizes</span>

Kuebler : Mini pulse counter, 6-digit without zeroing,W16.20 not resettable and are designed with different front panel sizes for different applications. They have a very good price/performance ratio and are easy to handle. 7-digit, K 04 to K 07 and AK 07 offer many variants and can be used in both DC and AC applications. As built-in, surface-mounted and print counters with very high shock resistance, they can be used in various application areas.

Electromechanical Counter	Summary
K07.20	Micro pulse counter, 7-digit,3 V DC..24 V DC/ 115 V AC..230 V AC, Dimensions 25 x 13,8 mm/25,2 x 31 mm/27 x 35 mm/29 x 14 mm
W16.20	Mini pulse counter, 6-digit without zeroing,115 V AC/230 V AC/12 V DC/24 V DC, Dimension N30 x 51 mm/34 x 23 mm \| 31,5 x 20,5 mm

Technical Specifications

Mechanical

Dimension	25 x 13\ 8 mm\ 25\ 2 x 31 mm\ 27 x 35 mm\ 29 x 14 mm\ 45 x 14 mm\ 30 x 20 mm 27 x 14 mm\ 32 x 15 mm 30 x 13 mm.
temperature range	-10 °C ... +60 °C\,-10 °C ... +50 °C
Protection category	IP65\ IP41

Electrical

Operating voltage	115 V AC\ 230 V AC\ 3 V DC\ 4\ 5 V DC\ 12 V DC\ 24 V DC\,
Current consumption	50mW 250mW 800mVA
