Electronic Counter

Relay or optocoupler outputs
Multirange power supply
Display scalable by multiplier or dividing factor
Display 6-digit number, LCD"

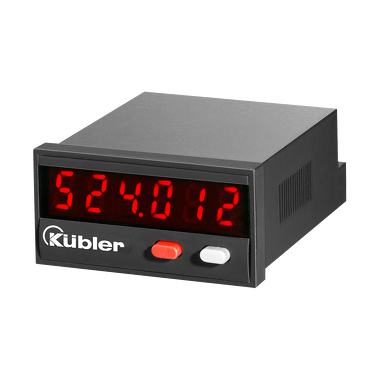

The Codix 524 is a voltage-powered multifunction counter with
4 functions in one device
Pulse, position, frequency and speed display, timer and short time
Meter for fast and slow counting pulses
With 6-digit LED display for NPN / PNP input signals

Description

Kuebler : The Codix 923 / 924 multifunction preset counter can be used universally. As a pulse preset counter, tachometer or time preset counter with up to 6 presets it offers various possibilities to solve control and monitoring tasks in every application. With the 2-line display in 4 different variants, the meter is easy to read and easy to program using the clearly arranged decade keys. More complex controls can also be implemented using a batch counter or total sum function.The Codix 524 is a power-supplied multifunction counter with 4 functions in one device. Pulse and position display, frequency and speed display, time counter and short time meter for fast and slow counting pulses. With 6-digit LED display for NPN, PNP input signals.

Technical Specifications

Mechanical

Dimension	48 x 48 mm \| 45 x 45 mm 48 x 24 mm \| 45 x 22 mm
temperature range	-20 °C ... +65 °C
Protection category	IP65
Weight	approx. 125 g , approx. 50 g
Functions	Pulse counter Frequency display Position displays without limit values Tachometer without limitvalues Hour meters / timers Short-time meter

Electrical

Operating voltage	10…30 V DC
Current consumption	240 V AC, max. 15 VA 24 V AC ,max. 6 VA DC 10 ... 30 V, max. 5.5 W 55 Mamp
Signal input	NPN PNP
