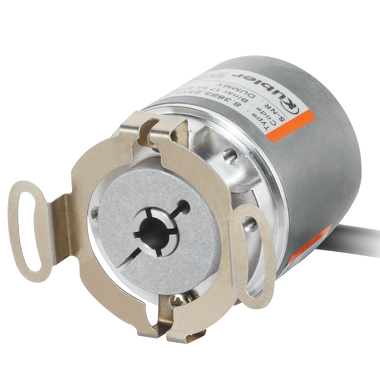

Kübler F3678
Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.
- High precision
- Particularly resistant
- Without gear with 100% magnetic insensitivity
- Dimension Ø 36 mm
- 16 bits singleturn
- Max 10 mm hollow shaft, blind hole
- Max 1/4" hollow shaft, blind hole
Description
Intelligent Scan Technology™ – powerful and economical at the same time. The absolute encoders Singleturn Sendix F3658 / F3678 with patented Intelligent Scan Technology™ and CANopen interface are characterized by special robustness and compactness. With dimensions of only 36 x 42 mm, a shaft or blind hollow shaft up to 10 mm is available. Its high-precision optical electronics achieve a resolution of 16 bits
Technical Specifications
Mechanical
| Dimension | Ø 36 mm |
| Shaft type | 6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 " hollow shaft, blind hole |
| Working temperature | -40 °C ... +85 °C |
| Flange type | Ø 36.00 mm |
| Connection types | Tangential cable |
| Max. rotational speed | 12.000 min-1 |
Electrical
| Power supply | 10...30 V DC |
| Interfaces | CANopen |
| Resolution max. | 16 bits singleturn |
Applications
- Compact absolute position on robot joints and small axes
- CANopen position feedback on mobile machinery
- Angle measurement near motors without magnetic interference
- Position feedback on medical and laboratory equipment
- Tight installation spaces with 36 mm housing
