F5868
Kübler

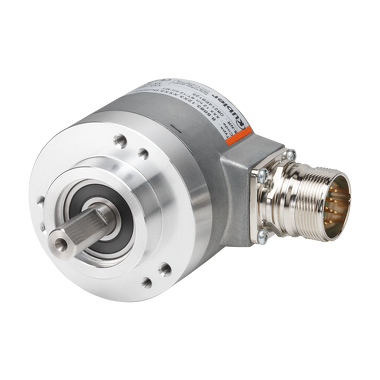

Kübler F5868

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • High precision
  • Resistant
  • Without gear with 100% magnetic insensitivity
  • Dimension Ø 58 mm
  • 16 bits singleturn
  • 16 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Intelligent Scan Technology™ – electronic field bus encoders. The absolute encoders Multiturn Sendix F5868 / F5888 with CANopen interface and patented Intelligent Scan Technology™ are particularly high-resolution optical encoders without gears with 100% magnetic insensitivity. 32 bit total resolution, through hollow shaft up to 15 mm and CANopen functionalities according to current encoder profile.

Technical Specifications

Mechanical

DimensionØ 58 mm
Shaft type6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface
Working temperature-40 °C ... +80 °C
Flange type
  • Synchro flange / Servo flange Clamping flange Square flange Ø 58.00 mm ❏ 63
  • 50 mm
Connection typesRadial cable M12 connector radial
Max. rotational speed12.000 min-1
Protection categoryIP65 IP67

Electrical

Power supply10...30 V DC
InterfacesCANopen

Applications

  • Multiturn absolute positioning over CANopen on machine axes
  • Hook and trolley position feedback on cranes and hoists
  • Position feedback on mobile and agricultural machinery
  • Absolute position on stage and lifting systems
  • High-resolution multiturn positioning on packaging line axes
