GP02
Siko

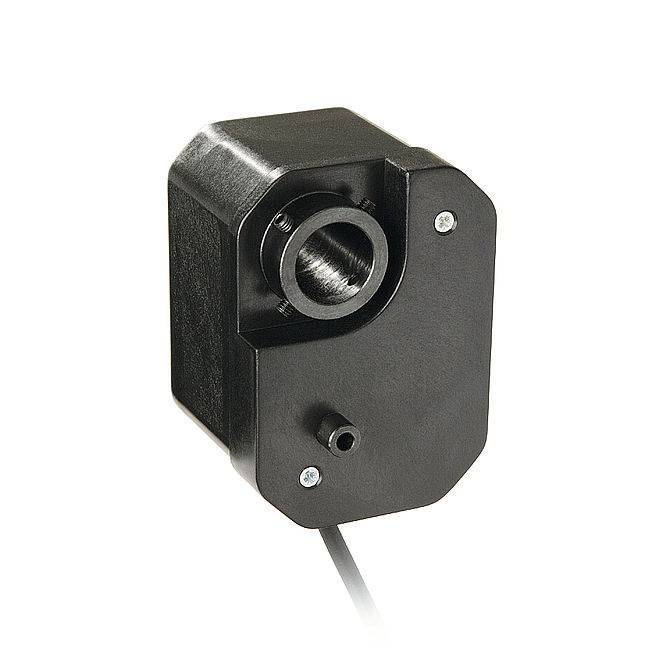

Siko GP02

  • Through hollow shaft Ø 14 mm
  • Adaptation to various measurement distances owing to a wide range of gear ratios
  • Compact, low-cost design
  • Potentiometer or power output
  • Easy mounting

Description

Siko: Geared potentiometer With compact design with through hollow shaft

Technical Specifications

Mechanical

Protection categoryIP52
Shaftblack-finished steel
Gear ratio0.2 … 128
Speed≤500 rpm

Electrical

Temperature range0 … 80 °C
Operating voltage24 V DC ±20 %

Applications

  • Position feedback on spindle adjustment axes
  • Measuring travel of format adjustments via gear ratios
  • Low-cost analog position on packaging machines
  • Through hollow shaft mounting on 14 mm spindles
