H100
Kübler

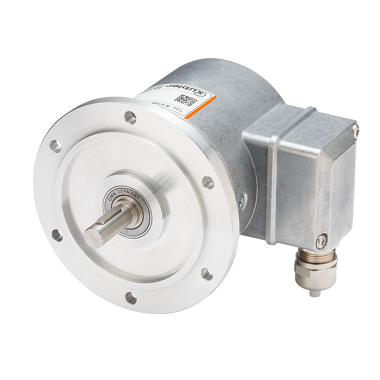

Kübler H100

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Particularly resistant
  • Extremely robust bearing structure
  • Simple installation
  • Dimension Ø 115 mm
  • 5.000 ppr incremental
  • Max 11 mm shaft, with feather key
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Kuebler Sendix Heavy Duty H100 The Sendix H100 is an extremely robust incremental encoder which is available in 3 versions - as a encoder with and without speed switch and as a twin encoder. The special HD-Safety-LockTM design makes it ideal for applications in heavy industry such as steel plants and cranes. Resistant materials, wide temperature ranges and high protection ensure insensitivity to the harshest environmental conditions. The innovative connection technology enables simple and quick installation.

Technical Specifications

Mechanical

DimensionØ 115 mm
Shaft type11 mm shaft, with feather key
Flange typeEuro flange Ø 115.00 mm
Connection typesTerminal box
Max. rotational speed6.000 min-1

Electrical

Working temperature-40 °C ... +100 °C
Power supply5...30 V DC 10...30 V DC
InterfacesGegentakt TTL / RS422

Applications

  • Speed and position feedback in steel plants and rolling mills
  • Hoist and travel feedback on EOT cranes
  • Heavy-duty motor feedback in cement, mining and port equipment
  • Overspeed monitoring with speed switch version on heavy drives
  • Redundant feedback using the twin encoder version on critical drives
