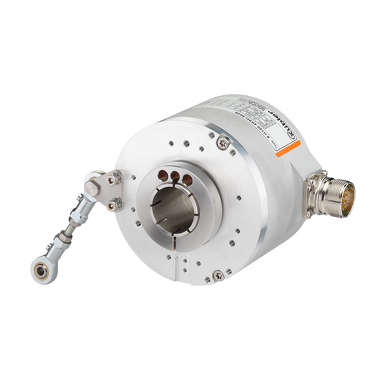

Kübler H120

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • For large motors and generators
  • Particularly resistant
  • Simple installation
  • Dimension Ø 100 mm
  • 5.000 ppr incremental
  • Max 12 mm hollow shaft, blind hole
  • Max 28 mm hollow shaft, through
  • Max 16 mm insert shaft, cylindrical
  • Max 17 mm insert shaft, tapered
  • Max 1" hollow shaft, through
Not sure this is the right model? Read the rotary encoders selection guide →

Description

For heavy duty applications – extremely robust hollow shaft encoders. The incremental encoder Sendix H120 is ideal for large motors and generators. It is highly accurate and extremely robust thanks to HD-Safety-Lock™ - the Heavy Duty hollow shaft design of the latest generation with strong bearing construction and integrated bearing insulation. The double-protected shaft, the wide temperature range and the high protection enable use even under the most adverse conditions. The particularly large hollow shaft up to 28 mm, the variety of mounting solutions and connection variants offer maximum flexibility during installation.

Technical Specifications

Mechanical

DimensionØ 100 mm
Shaft type12 mm hollow shaft, blind hole 16 mm hollow shaft, through 20 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 1 " hollow shaft, through 16 mm insert shaft, cylindrical 17 mm insert shaft, tapered
Flange typeØ 100.00 mm
Connection typesRadial cable M23 connector radial M12 connector radial Terminal box
Max. rotational speed6.000 min-1

Electrical

Working temperature-40 °C ... +100 °C
Power supply5 V DC 10...30 V DC
InterfacesGegentakt TTL / RS422

Applications

  • Speed feedback on large motors and generators
  • Encoder feedback on wind turbine and power generation drives
  • Drive feedback in steel rolling mills and heavy industry
  • Hollow shaft mounting on large-shaft motors in cement and mining plants
  • Motor feedback on large pumps, fans and compressors
