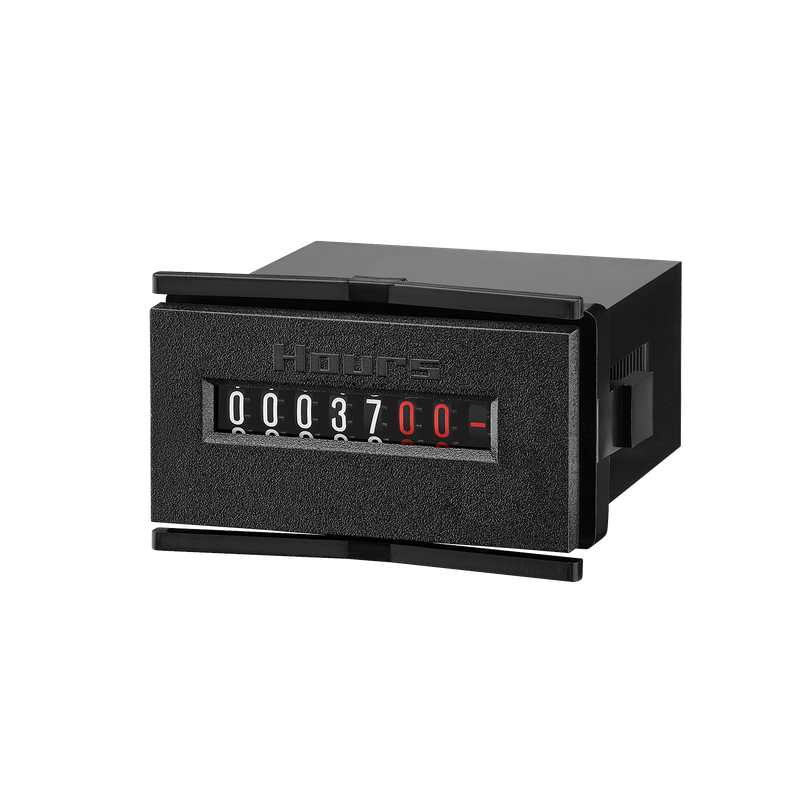

Hour meter H37

High shock resistance
No zero position
High protection, IP65
Dimension: 48 x 24 mm,45 x 22 mm, 53 x 28 mm ,50 x 25 mm,56 x 40 mm,50 x 25 mm
56 x 40 mm , 50 x 25 mm
Power supply: 20...30 V AC,42...48 V AC,187...264 V AC,10...30 V DC,36...80 V DC,100...130 V DC
Display 8-digit number, mech. roller counter

Description

Kuebler Hour meter with standard DIN dimensions. The H 37 hour meters have a very high shock resistance. As built-in meters with standard DIN dimensions, they can be used for a wide range of applications. These non-resettable counters are extremely tamper-proof.

Technical Specifications

Mechanical

Dimension	48 x 24 mm \| 45 x 22 mm 53 x 28 mm \| 50 x 25 mm 56 x 40 mm \| 50 x 25 mm
temperature range	-15 °C ... +50 °C
Protection category	IP65

Electrical

Operating voltage	20...30 V AC 42...48 V AC 187...264 V AC 10...30 V DC 36...80 V DC 100...130 V DC
Current consumption	10 ... 30 V DC approx. 500 mW 36 ... 80 V DC approx. 900 mW 100 ... 130 V DC approx. 750 mW 20 ... 30 V AC 50 Hz approx. 0.3 VA 42 ... 48 V AC 50 Hz approx. 0.25 VA 100 ... 130 V AC 50 Hz approx. 0.6 VA 187 ... 264 V AC 50 Hz approx. 1.2 VA
