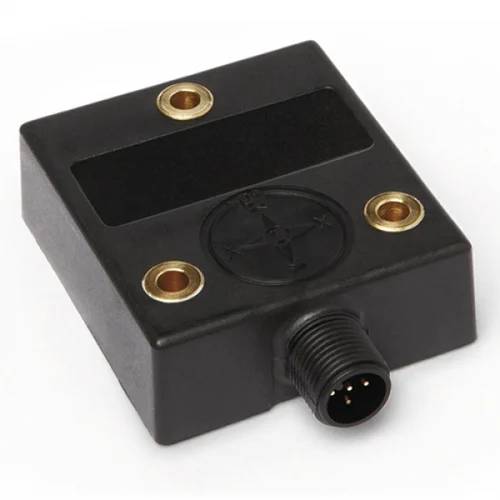

IK360L
SIKO

SIKO IK360L

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • One-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)
  • Accuracy ±0.5°
  • Resolution 0.01°
  • Voltage (0 … 10 V) or current output (4 … 20 mA) interfaces
  • Temperature-compensated
  • IP6K9K, IP68 protection class
  • Easy three-point mounting
  • Teach-in function (zero-point setting)

Description

Siko Inclinometer IK360L Absolute inclination sensor based on MEMS technology, accuracy ±0.5° The IK360L inclination sensor is an absolute inclination sensor for angle or inclination measurement based on MEMS technology. Thanks to the robust design up to IP6K9K, the inclination sensor can also be used in applications with substantial external influences. In addition, the free programming of system parameters as well as the teach-in function for zero point setting provides a high degree of flexibility and easy integration into the overall system. The IK360L is available in a single- and two-axis version and with a variety of analog outputs such as voltage and current outputs.

Technical Specifications

Mechanical

MATERIAL PROPERTIESPBT glass-fiber reinforced
Temperature range-40 to +85 C
Protection categoryP67

Electrical

Operating voltage10 … 30 V DC
Measuring range360° 1 axis X and Y = -80 … 80° 2 axes
Accuracy0.5
Interfaces
  • RS232+U
  • RS232+I
  • CANopen

Applications

  • Tilt monitoring on mobile machines and vehicles
  • Levelling of lifting platforms and crane outriggers
  • Angle measurement on solar tracking systems
  • Harsh outdoor installations with IP6K9K and IP68 protection
  • Boom angle feedback on construction equipment
