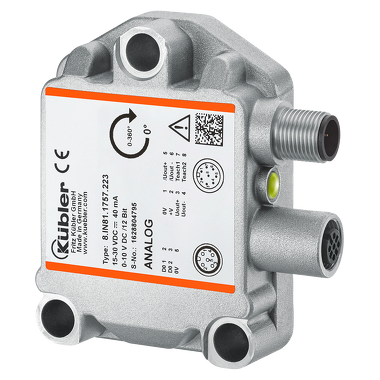

IN81 Analog

Preset and Teach functions
Robust design
Stackable assembly for redundancy

Description

Kuebler Inclinometer 1-dimensional inclinometer. Unmistakable accuracy – even in harsh environments. The IN81 inclinometer is used to detect the inclination angle in the measuring range of 0 ... 360°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40 °C to +85 °C, it is excellent for, among other uses, outdoor use in mobile automation.

Technical Specifications

Mechanical

MATERIAL PROPERTIES	metal housing.
Temperature range	-40 °C ... +85 °C
Protection category	IP67 IP69k

Electrical

Operating voltage	10...30 V DC
Measuring range	360°
Accuracy	± 0 2°
Interfaces	Redundant Analog 0 1...4 9 V Redundant Analog 0 5...4 5 V Redundant Analog 0...5 V Redundant Analog 0...10 V Redundant Analog 4...20 mA
