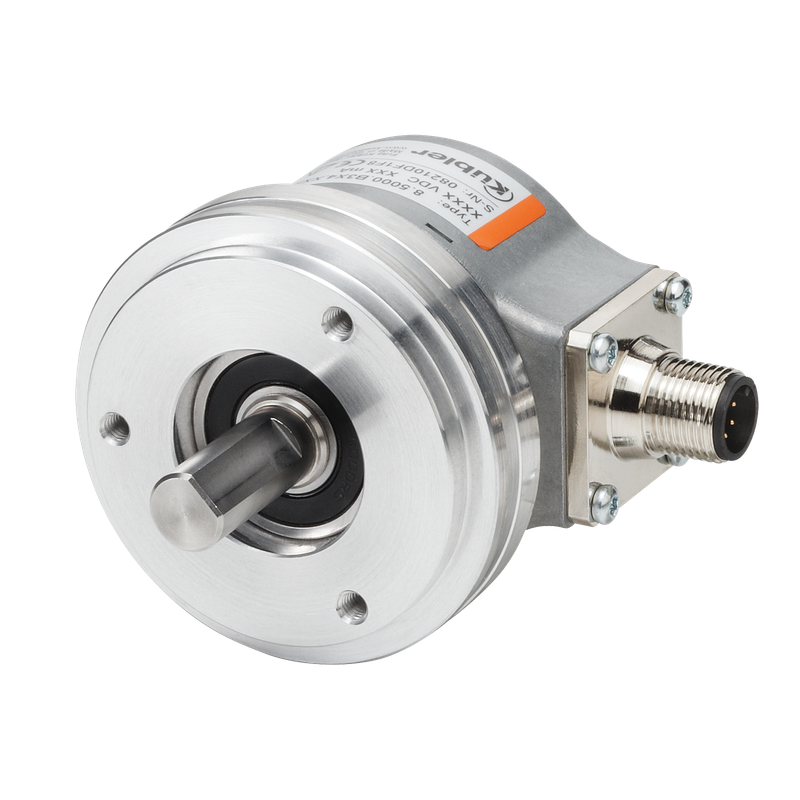

Incremental Encoder

Dimensions from Ø 24 mm to Ø 58 mm
Optical and magnetic scanning
Working temperature range -40 °C to +105 °C
Resolution up to 36,000 ppr
HTL, TTL, and SinCos output signal

Description

Kuebler : Speed measurement on rotating axes with incremental encoders. Sizes from miniature to maxi available. Optical and magnetic scanning. From standard to specially certified encoders.There are also a variety of mechanical and electrical ordering options.

Technical Specifications

Mechanical

Dimension	Ø 50 mm , Ø 58 mm , Ø 40 mm , Ø 24 mm
Shaft type	6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 11 mm shaft, with flat surface 12 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface
Flange type	Synchro flange / Servo flange Clamping flange Square flange Euro flange
Connection types	Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial MIL connector
Max. rotational speed	12.000 min-1 4.500 min-1
Working temperature	-40 °C ... +85 °C
Protection level	IP65 IP66 IP67
Weight	400 g

Electrical

Power supply	5 V DC 5...30 V DC 10...30 V DC
Interfaces	Gegentakt TTL / RS422 Open Collector
Scanning	optical
