KIH50
Kübler

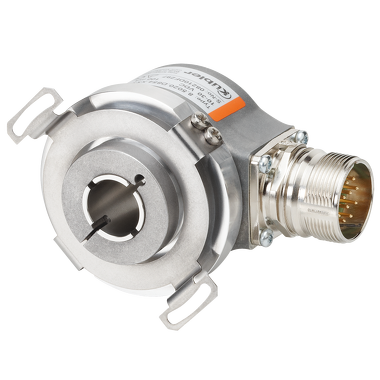

Kübler KIH50

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Economical
  • Ideal for simple machines
  • Robust bearing structure
  • Dimension Ø 50 mm
  • 5.000 ppr incremental
  • Max 15 mm hollow shaft, through
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Kuebler The economical sensor solution. The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines

Technical Specifications

Mechanical

DimensionØ 50 mm
Shaft type8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through
Flange typeSynchro flange / Servo flange Clamping flange Ø 58.00 mm
Connection typesAxial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial
Max. rotational speed6.000 min-1

Electrical

Working temperature-20 °C ... +70 °C
Power supply5 V DC 5...30 V DC 10...30 V DC
InterfacesGegentakt TTL / RS422 Open Collector

Applications

  • Speed feedback on simple machines and small motors
  • Conveyor speed monitoring in packaging and material handling
  • Hollow shaft feedback on textile and printing machines
  • Cost-effective position counting on OEM machinery
  • Roller and shaft speed measurement on converting machines
